In the Project selection dialog area you will see a directory tree, similar to MS Explorer.

All functions in the project selection [Project selection] area can be accessed via context menu commands on each level.

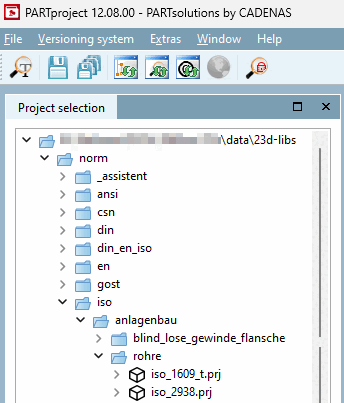

The following image shows the opened norm folder (Industry Standards), including the subfolders and project files.

Directory tree with projects and project files

At project level, different files, such as *.pra (2-D preview), *.3db/3gb (geometry), *.tac (attribute table) and *.bmp (part bitmap) are summarized.

	Note
	The icon displayed in the directory tree depends on the project type [Project type].[17] Depending on the selected project type, the associated tab pages in the Edit project area are composed differently.
