5.8.2.1.15.21. Classification checker

5.8.2.1.15. Automation 5.8.2.1.15.21. Classification checker
Prev	Next

The tool checks whether a catalog contains data able to be classified but not yet are.

If, for example, a catalog contains variables having a weight unit, it is quite obvious that this is the component weight.

The evaluation by this tool only displays faulty (or possibly faulty) columns/variables.

As incorrect the following is considered:

isCustomsTariff= true (11 digit number) & hasCNSCTN=false & hasCNSECCN=false
An available number, but not being a 11 digit number is considered as "false".
hasCNSMASSEXACT = false & isWeight =true (it is checked, if a value is <=0; this results also in "false")
isClassified = false & isRangeValue=true

	Note
	The check is only related to the CNS classification.

The call may happen on any directory/project under Automation.

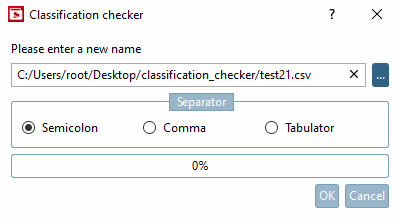

In the dialog Classification check, enter storage path and name for the output file and determine the delimiter.

After successful export a respective message is displayed.

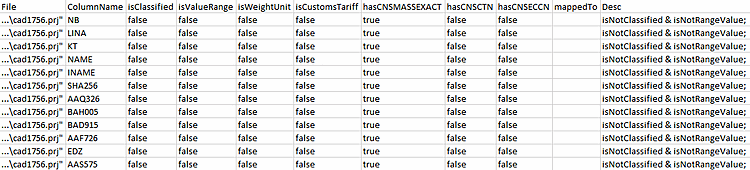

Exemplary result:

File: PRJ file name
ColumnName: Column name in table
isClassified: ColumnName is assigned to cns_* (is classified)
is ValueRange: ColumnName is a value range (yellow field)
isWeightUnit: The variable's unit is convertible to 'kg'
If there is a classification according to weight, but the table does not contain a reasonable value (e.g. 0kg), then under "desc" "invalidWeight(<=0)" is displayed.
isCustomsTarif: Does the respective variable contains the CustomsTariff number?
"true" is displayed if either hasCNSCTN or hasCNSECCN is "true".
hasCNSMASSEXACT: Is CNSMASSEXACT classified in the project?
hasCNSCTN: Is CNSCTN classified in the project?
hasCNSECCN: Is CNSECCN classified in the project?
mappedTo: Contains the currently mapped value and gives the hint that the set value is wrong (e.g. cns_CNSGEOMBASE_CNSMASSEXACT instead of cns_CNSPHYPROP_CNSMASSEXACT)
Desc = the set filter (some variables have 2):
- no cns_CNSPHYPROP_CNSMASSEXACT & isWeight = No assignment in cns_CNSPHYPROP_CNSMASSEXACT and column unit is 'kg'
- isNotClassified & isRangeValue = No assignment in cns_* and value range in table
- isNotClassified & isNotRangeValue = No assignment in cns_* and no value range in table
