7.9.3.1. Basic information on operation

The following explains the basic instructions for use:

Executing a function
- Activate button with simple mouse click.
  -> The buttons' function is "hanging" on to the cursor and the button is highlighted.

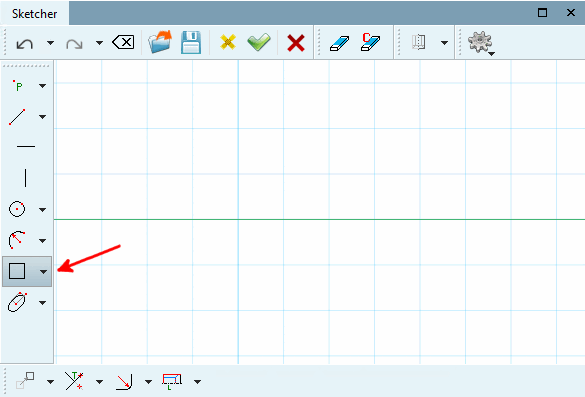

  Button highlighted
- Move the cursor to the desired location in the sketch.
  -> Depending on the selected command, the object snap (circular symbol) becomes visible.
- Execute the function of the button by simply clicking the mouse at the desired position (e.g. insert line [Insert line] ).
Mouse functions:

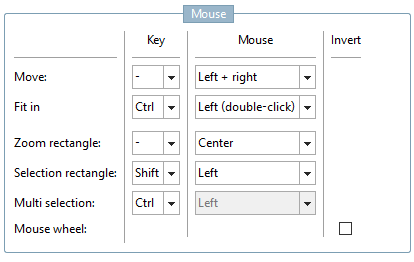

- Move: You can move the entire content by holding down the left and right mouse buttons.
- Fitting [Fit in]: Double-click while holding down the Ctrl key. -> The entire content of the Sketcher is fitted exactly into the window.
- Zoom rectangle: Drag a rectangle while holding down the middle mouse button.
- Selection rect [Selection rectangle] angle: Hold down the Shift key and drag a rectangle with the left mouse button.
- Multiple selection [Multi selection]: Hold down the Ctrl key and click on the desired elements.
- Mouse wheel: Use the mouse wheel [Mouse wheel] to zoom in and out. If you activate Reverse [Invert], it is the other way round. The position of the object changes depending on where you positioned the mouse cursor before rotating.

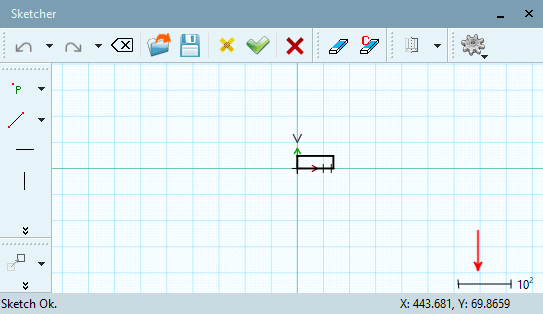

  You can see the scaling factor right below. Positive exponential numbers signalize that you zoomed out, negative that you zoomed in. Double-clicking with pressed Ctrl key resets to the standard scaling factor (10 to the power of 0).
You can change the default settings under PARTdesigner -> Extras menu [Extras] -> Settings [Preferences...]... -> Sketcher (hist.) [Sketcher (feat.)] -> Mouse.

Deactivate commands: Activated commands are deactivated by clicking on another command or by a secondary mouse click in the sketcher area.

Note
You can only select an element once you have clicked with the secondary mouse button in an empty area of the drawing!

Some commands are inactive at first
The buttons in the Copy, Mirror, Rotate tool group, for example, can only be selected when a drawing element is selected .

Note
Only when clicking into the empty area of sketch with secondary mouse key before, an element can be selected!

Automatic object snap on points and auxiliary points of construction: If you move the cursor in the immediate area of a start, middle, endpoint or intersection point, these points will be surrounded by a small blue circle and thus identified as points and auxiliary points of construction.

You can select any point of construction (yellow point) or auxiliary point of construction (only blue circle) on the element.

Construction points (yellow dots): Start, middle and end point of an element (line or circle, for example)

If a command is activated, construction help points are also displayed (blue circle) if the mouse pointer is moved over the point.

Construction point: Start, middle and end point of a line

Construction point: Start, middle and end point of a circular arc

Auxiliary point of construction in the intersection point of two circles

Overlapping of two figures lying on top of each other: If two figures lie on top of each other in such a way that two lines lie directly on top of each other, the different lines are selected one after the other. If you have selected the first line with a single left-click, you must move the mouse pointer away briefly. The second line is then selected with another left-click on the line.
Quick settings:
- Snap to grid: If, for example, a line is drawn, it is automatically placed on grid lines. Placement between grid lines can only be achieved if the option is switched off.

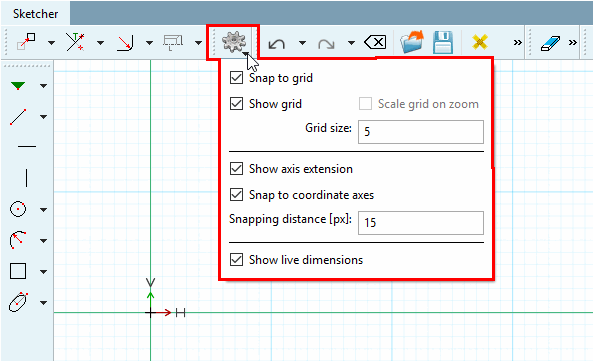

  Quick settings
- Show grid:
  - Grid spacing [Hatch spacing]: Specification in mm
    You can set the color for the grid under Color settings.
- Scale when zooming [Scale grid on zoom]:
  If the option is activated, the rasterization is automatically scaled by a factor of 10 when zooming in from a certain point. See the following two illustrations. If the Snap to grid option is activated, this option is automatically deactivated, as snapping to "wrong" points is not desirable.

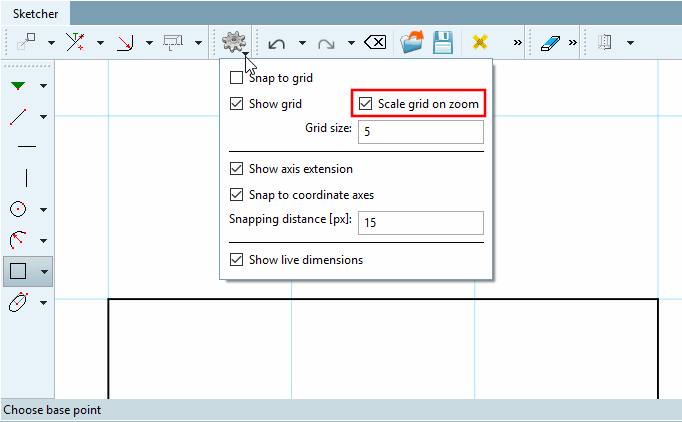

  Grid with standard view

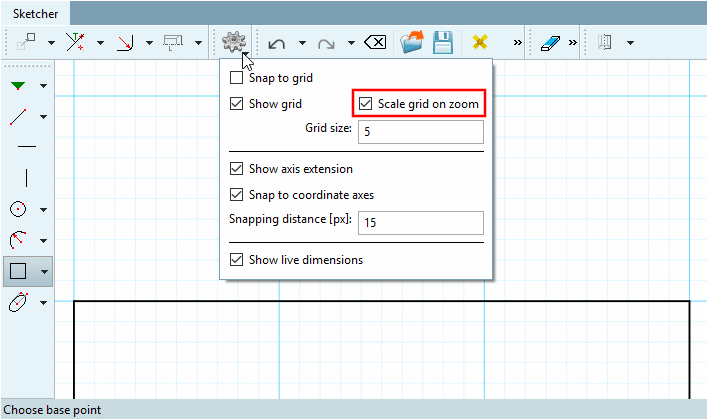

  Grid scaled with factor 10
- Scalar parameters: This option is used, for example, when creating circles or drawing angles (e.g. circle through center point and radius/point [Circle with center point and radius/point] or line at an angle a to the horizontal with length L [Line at angle to horizontal, length] ).
  For example, if a width of 5 is set, a circle will snap at multiples of 5, regardless in which direction the mouse is moved.
- Show scale:
  Den Vergrößerungs- / Verkleinerungsmaßstab sehen Sie im Sketcher rechts unten. Positive Exponentialzahlen signalisieren, dass herausgezoomt wurde, negative, dass hereingezommt wurde. Ein Doppelklick mit gehaltener Strg-Taste stellt wieder auf den Normal-Maßstab (10 hoch 0) um.
- Display [Show axis extension] axle extension:

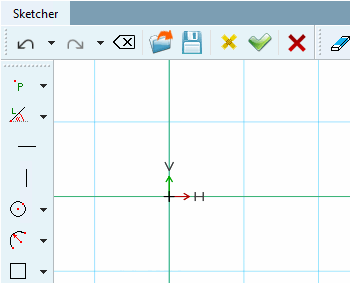

  Axle extension [Axis extension] on (default)

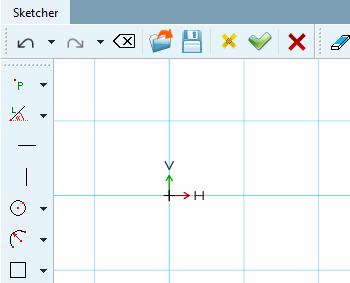

  Axle extension [Axis extension] off

  Under Color settings, you can set the color for the coordinate system and the axis extension.
- Snap to coordinate ax [Snap to coordinate axes] es: If, for example, Snap to grid is switched off but this option is activated, a line is strictly oriented to the coordinate axes, whereby the length remains free in contrast to Snap to grid.
  Snap-in distance [Snapping distance] [px]: Default value is 25
Sorting into groups

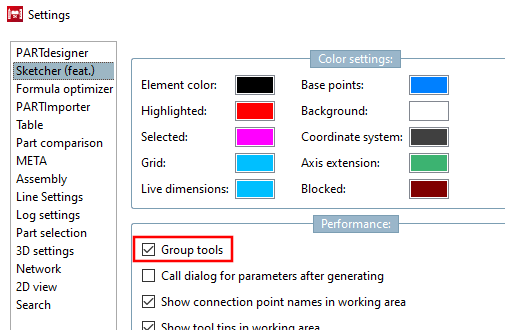

For a better overview, the individual function buttons are grouped together in toolbars with similar functions. In V12, only the last one used is displayed, the others can be accessed via a list box function (small black arrow). In the PARTdesigner under Extras menu -> Settings [Preferences...]... -> Sketcher (hist.) [Sketcher (feat.)] there is the option Group tools, so that you can also return to the old V11 behavior (all buttons are visible).

The single toolbars can be moved.

Switch toolbar on and off

With the secondary mouse key, click in one of the toolbars and set or remove the checkmark at the desired toolbar.

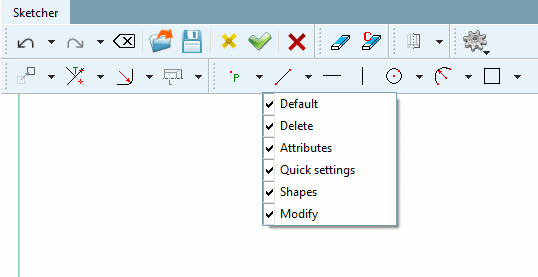

Toolbars

The single toolbars:

	Note
	Most toolbars are visible both in pure sketch mode and in 2D drawing mode (see Section 7.9.2, “Launching the Sketcher ”), some only in 2D drawing mode. You will find a corresponding note in the following list.

Standard [Default]" toolbar: Pure sketch and 2D drawing mode
"Erase [Delete]" toolbar: pure sketch and 2D drawing mode
Attributes" toolbar: Pure sketch and 2D drawing mode
Quick settings " toolbar: Pure sketch as well as 2D drawing mode
Toolbar " Shapes ": Pure sketch as well as 2D drawing mode

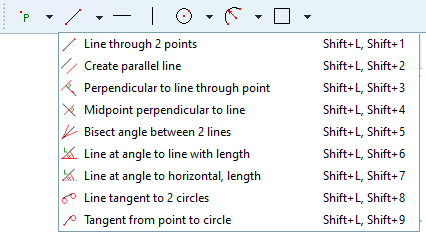

The "Shapes [Shapes] " toolbar contains tools for points [Points], lines [Lines], circles [Circles], arcs [Arcs], N-corners
" Modify " toolbar: Pure sketch and 2D drawing mode

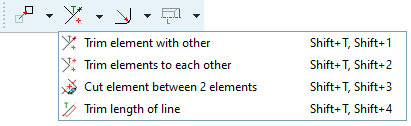

The "Modify [Modify] " toolbar contains tools for transforming [Transform], cropping (part 1), cropping (part 2), thread [Threads]
Text "toolbar: 2D drawing mode only
Attributes -> Dimensioning mode " toolbar: 2D drawing mode only

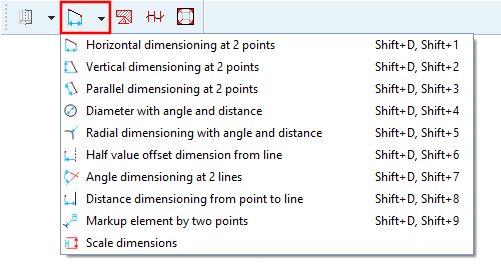

"Dimensioning" toolbar

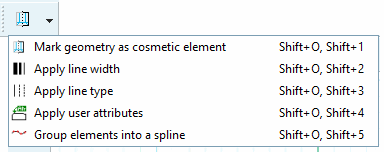

Toolbar " Attributes -> Insert hatching [Insert hatch] ": 2D drawing mode only
Attributes -> Polyline " toolbar: 2D drawing mode only
Toolbar " Shapes " -> Tool group "Ellipses [Ellipses] ": 2D drawing mode only

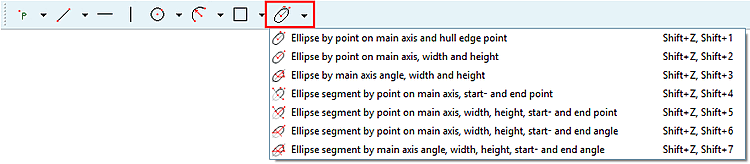

Ellipses toolbar

Key commands [Shortcuts] (shortcuts)
You can call up the individual functions in the Sketcher using key commands.
Advantage: time saving. Keyboard shortcuts allow commands to be executed much faster than with the mouse.
Disadvantage: You have to memorize the shortcuts. In addition to the name, the tooltips also show the shortcut so that you internalize them over time.

The following figure shows an overview of all shortcuts.

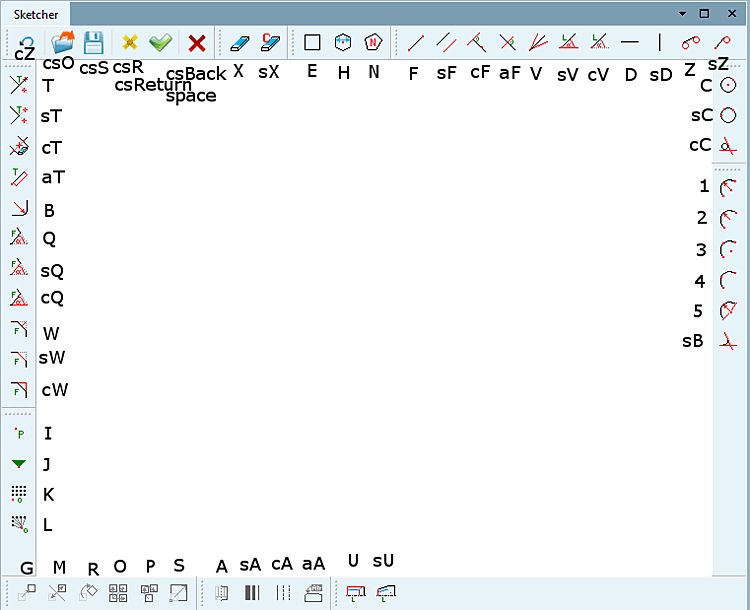

Overview of key commands [Shortcuts]

There are different modes to call them:
- Only character/number
- c + character/number (c stands for Ctrl key)
- s + character/number (s stands for shift key)
- cs + character/number (cs stands for Ctrl key combined with shift key)
- a + character/number ( a stands for Alt key)
Esc cancels the currently selected function.

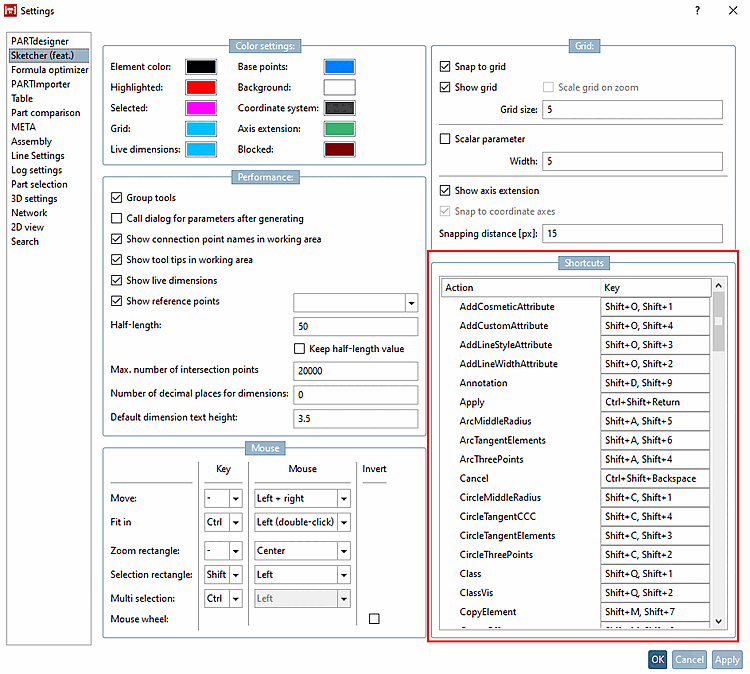

Under PARTdesigner -> Extras menu [Extras] -> Settings [Settings...]... -> Sketcher (hist.) [Sketcher (feat.)] -> Key commands [Shortcuts] you can customize the existing key commands.
Use Fig. „Overview of key commands [Shortcuts] “ to find the corresponding command. If you know the key combination, you can search for it in the Key column. Enter the new desired key command here and make sure that there is no conflict with an existing one, otherwise the command will not work.
Convert to [Change into formula point] formula point:
If fixed points are used when executing functions, these points appear in the Edit element docking window and not their coordinates. If adjustments are to be made to the coordinates, a point must first be converted into a formula point.
1. Select the point to be converted.

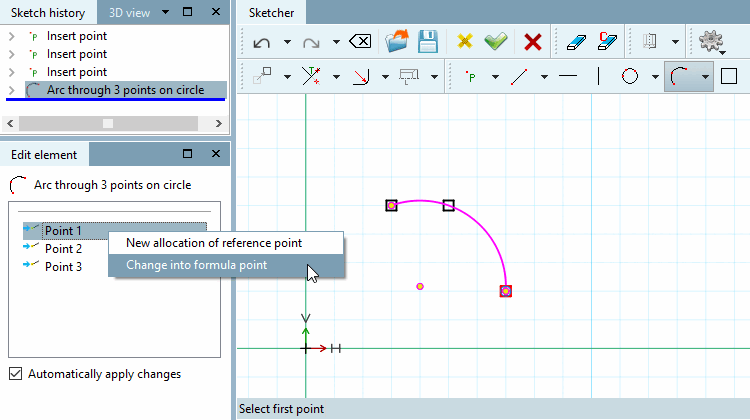

  Arc over 3 points on circumference [Arc through 3 points on circle] -> Convert to formula point [Change into formula point]
2. Click on the Convert to formula point [Change into formula point] context menu command.

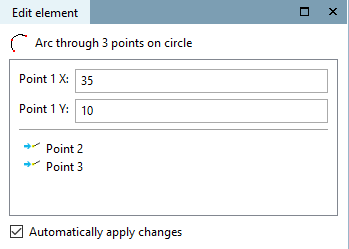

  -> The point coordinates are now displayed under Edit element.

  Display of point coordinates
Reassign [New allocation of reference point] reference point:
You can also assign other reference points retrospectively (provided they already existed in the sketch history [Sketch history] ).
1. Click on Reassign reference point [New allocation of reference point] in the context menu.
  -> Select new reference or intersection point. [Choose new reference or cut point...].. is displayed in the status bar. is displayed.
2. Select the new point.
  -> The function is accordingly adjusted.

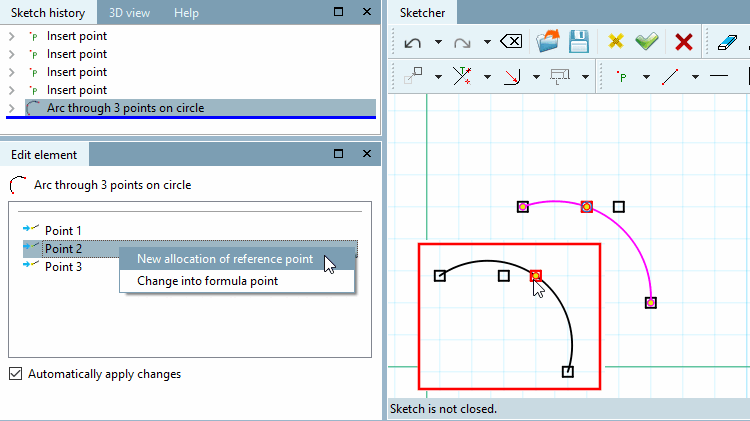

  Arc over 3 points on circumference [Arc through 3 points on circle] -> reassign reference point [New allocation of reference point]
Edit selection:
In cases where multiple selection is possible, the item Edit elements [Elements] with context menu command Edit selection is displayed in the Edit element docking window.

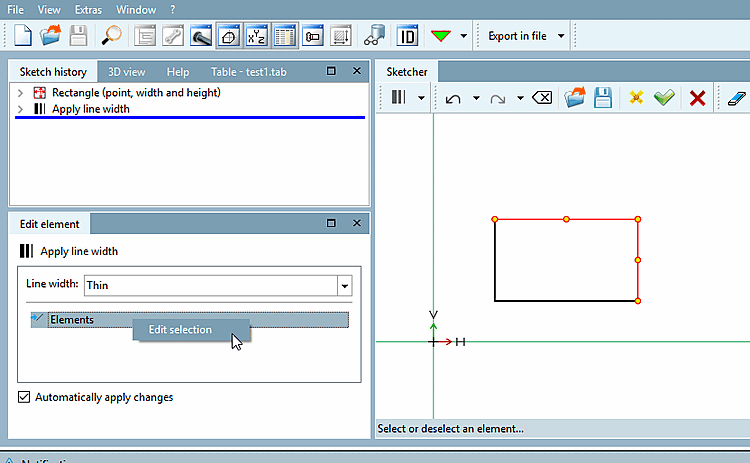

Edit selection
1. Click on the Edit selection context menu command.
2. Select or deselect the desired elements.
  -> The command is immediately executed.
