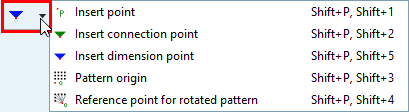

Toolbar of the point shapes

The finished point is marked in the drawing by a square frame.

Point

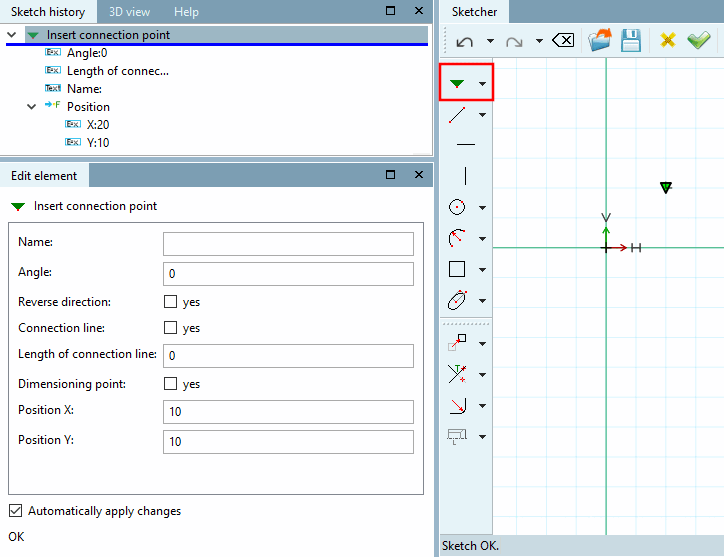

To set a connection point, select the Insert connection point tool in the Sketcher.

-> The connection point is marked with a green triangle in the drawing.

-> The individual parameters are displayed in the Edit element docking window and can be adjusted as required.

Selected

Further details can be found at:

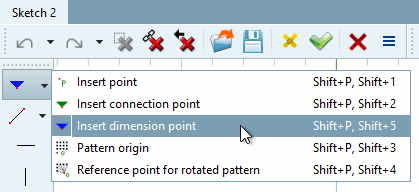

You have two options for setting a dimension point:

Details on dimension points can be found under Section 7.16, “ Docking window "Dimensions " ”.

Shortcut keys

If the Insert connection point function is activated, you can use the following keyboard shortcuts:

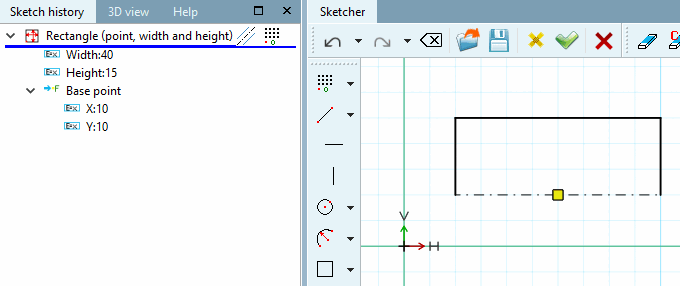

The fully positioned pattern origin is marked in the drawing by a yellow square.

Sample origin [Pattern origin]

The corresponding icon is displayed in the sketch history.

The item can be removed via the context menu command.

See also Section 7.6.2.10.2, “Create pattern manually ”.

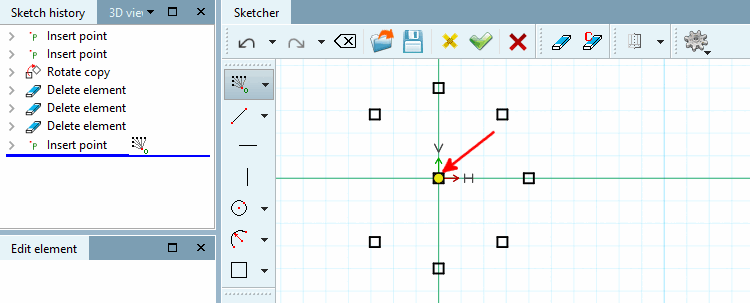

The reference point set for rotation patterns is marked by a yellow circle in the drawing.

Reference point for rotation patterns [Reference point for rotated pattern]

The corresponding icon is displayed in the sketch history [Sketch history].

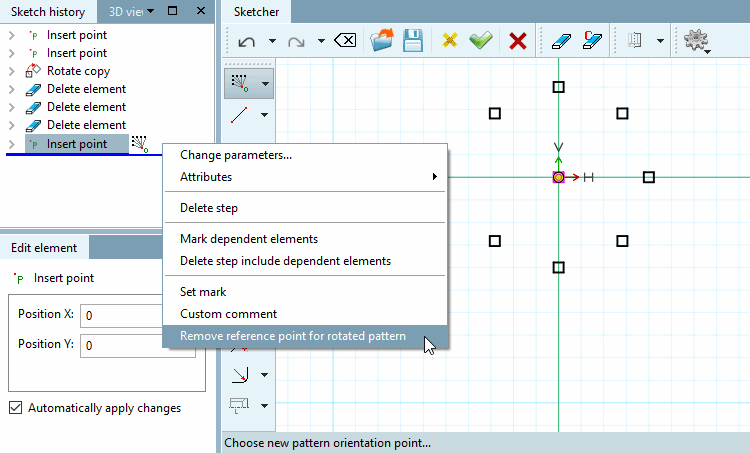

The point can be removed via the context menu command Remove reference point for rotation pattern [Remove reference point for rotated pattern].

Remove reference point for rotation pattern [Remove reference point for rotated pattern]

See also Section 7.6.2.10.2, “Create pattern manually ”.
