7.9.3.14.1. Text

	Note
	Only available in Drawing mode.

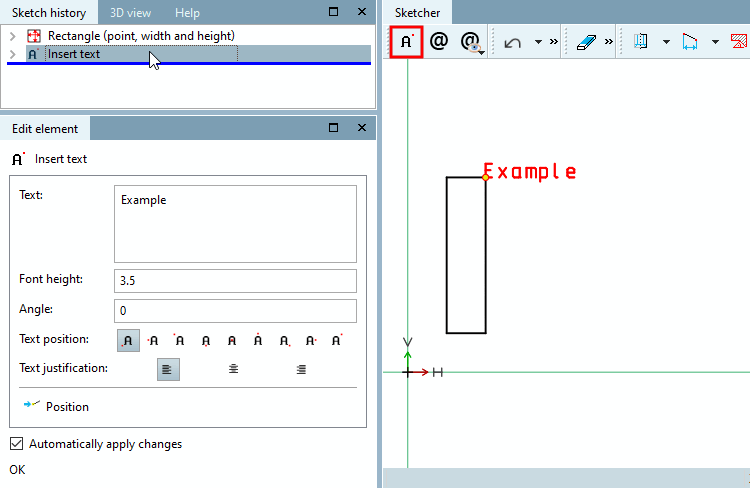

Insert text
1. Click on the button and move the mouse cursor over the desired insertion point.
  -> The snap is shown at the selected position.
  With a mouse click the function is executed.
  -> The single setting parameters are displayed in the docking window Edit element.
2. Under Text, enter the desired text and determine the visual appearance with the following setting options:
  - Font height
  - Angle
  - Text position
    The red point at the "A" shows the relation to the text.
  - Text justification: left, center, right
  - Position X
  - Position Y
Insert text

Insert BMG Layer

[Note]

Note

Precondition is an up-to-date CNS classification. The feature has been officially released with version V11 SP6.

An example on this can be found under Section 5.10.2.6, “BMG Layer (DIN4003) ”.

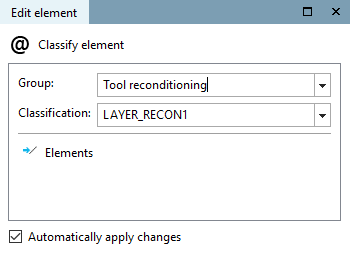

Classify element
1. Click on the element to be classified and then on the button.
  -> The single setting parameters are displayed in the dialog box Edit element.
2. Under Group and Classification, select the desired option.

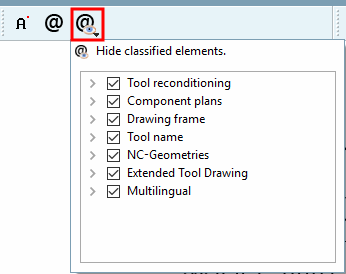

Hide classified elements
1. Click on the button.
  -> The dialog area Hide classified elements is opened.
2. Enable/disable the checkbox at the desired groups.
