Insert polyline

Follows...

Split polyline

Polylines, such as for example occur when cutting two cylinders, are also split into "calculable" single segments with this function (circular arcs, ellipses, etc.).

As a group of single segments, the polyline can be edited and/or trimmed as well as imported to a CAD system with the "recognizable" properties.

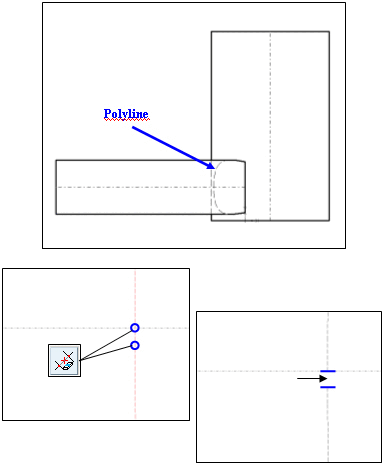

In the example on the right (section greatly enlarged), the polyline [Polyline] can be broken up [Cut element between 2 elements] and trimmed using an element between 2 points [Cut element between 2 elements], for example.

Scale drawing

Click on the Scale drawing icon to open the dialog box of the same name.

Enter the desired scaling factor [Scale factor] in the Value input field.

Optionally, activate the Create SCALE variable [Create variable SCALE].

Confirm with Ok.

-> The drawing is scaled and the Edit element docking window is opened.

Example:

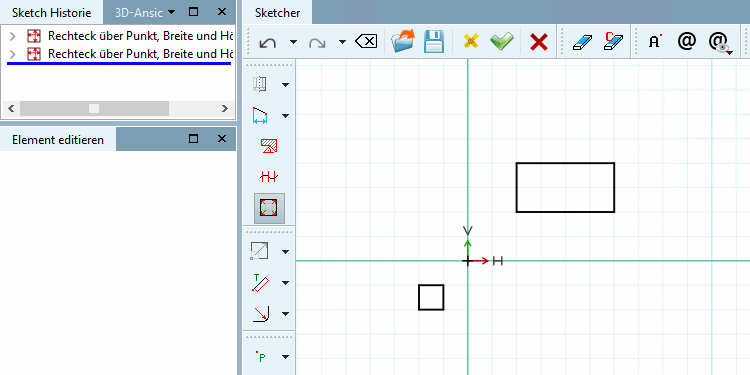

Original drawing

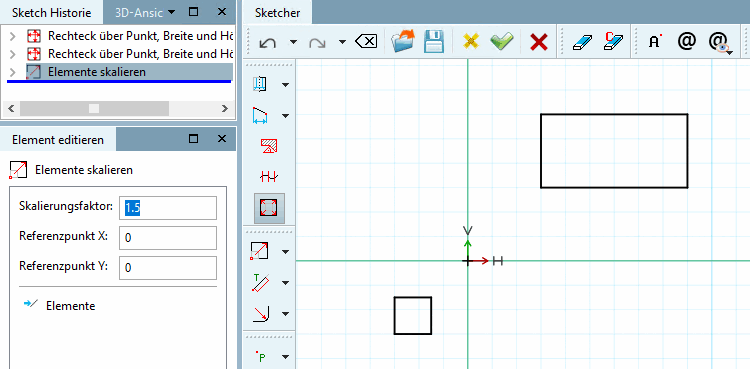

Drawing scaled with scaling factor [Scale factor] 1.5

You can adjust the scaling factor [Scale factor] and reference point [Reference point] X / reference point [Reference point] Y in the Edit element docking window.
