If the Sketcher is called up via the context menu command New 2D drawing.. [New 2D drawing...]. context menu command, the dialog window of the same name opens first.

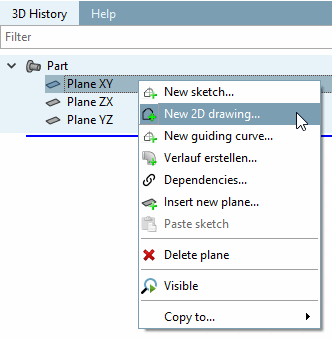

New 2D drawing... - Call

After selecting a view [View] and confirming with OK, the Sketcher opens.

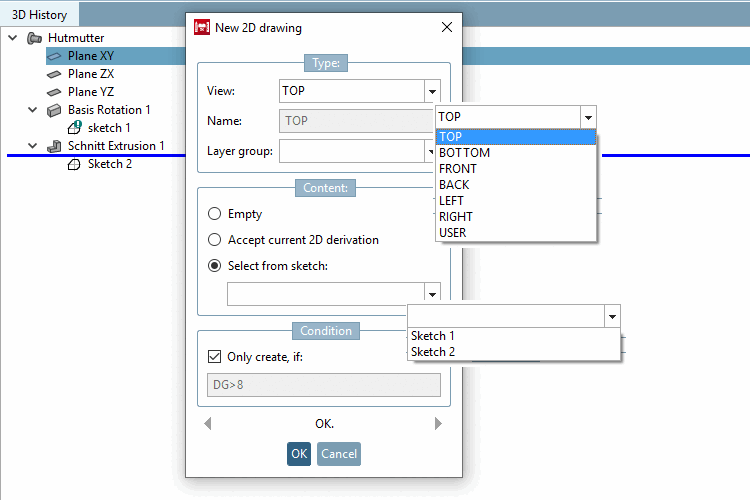

New 2D drawing... - Dialog window

In the New 2D drawing mode, there are additional tools available compared to the pure sketch mode [Sketch], which are explained below.

Text" [Text] toolbar

Text" [Text] toolbar
Attributes " toolbar -> "Dimensioning" [Dimensioning] tool group

Dimensioning " tool group
Attributes " toolbar -> Hatching [Hatches]

Hatches
Attributes " toolbar -> Polyline

"Polyline" tools
Toolbar "Shapes [Shapes] " -> Tool group "Ellipses [Ellipses] "

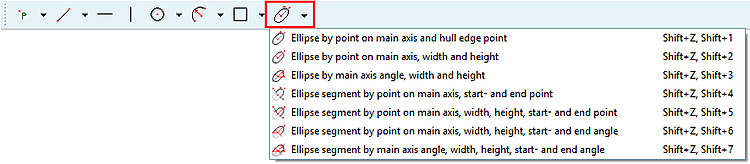

Ellipses " tool group
