5.7.5. Create and configure roles
5.7.5.1.
Roles: General " tab page
|  |
| Prev | Next |
PARTadmin → Category → PARTsolutions → ERP environment → Roles
On the General tab page, you can control the display of the catalog index and table in the PARTdataManager to specifically influence the parts selection [Part selection].[71]
For details see Section 5.7.5.1.1, “ Dialog box for role selection - plinkgroups.cfg -> Block [Role name] -> Keys "DESC" and "IMAGE" ”" Section 5.7.5.1.1, “ Dialog box for role selection - plinkgroups.cfg -> Block [Role name] -> Keys "DESC" and "IMAGE" ”.
For details, see Section 5.7.5.1.2, “ Preferred series - plinkgroups.cfg -> Block [Role_name] -> Key "PREFRANGE" ”.
For details, see Section 5.7.5.1.5, “ Filter condition for data records - plinkgroups.cfg -> [role name] -> key "CONDITION" ”.
Viewing condition for table rows
For details see Section 5.7.5.1.4, “ Display condition for table rows - plinkgroups.cfg -> Block [Role_name] -> Key "TABRESTRICTION" ”.
For details see Section 5.7.5.1.6, “ Columns to be displayed - plinkgroups.cfg -> Block [Role_name] -> Key "VARSUSED / VARSHIDDEN" ”.
Columns not to be displayed (only for export) [Columns not to be displayed (export only)]
For details see Section 5.7.5.1.6, “ Columns to be displayed - plinkgroups.cfg -> Block [Role_name] -> Key "VARSUSED / VARSHIDDEN" ”.
For details see Section 5.7.5.1.7, “ Export condition - plinkgroups.cfg -> Block [role name] -> Key "EXPORTRESTRICTION" ”.
Tooltip displayed for exportable lines
Tooltip displayed for not exportable lines
For details, see Section 5.7.5.1.8, “ Export information (tooltip) at status lights - plinkgroups.cfg -> Block [Role_name] -> Key "TOOLTIPTEXTEXPORTON" / "TOOLTIPTEXTEXPORTOFF" ”.
Display condition for parts selection
For details see Section 5.7.5.1.3, “ Display condition for part selection - Colored catalog index - plinkgroups.cfg -> Block [Role_name] -> Key "CONDITIONTREE" ”.
For details see Section 5.7.5.1.9, “ Release certain directories for export - plinkgroups.cfg -> Block [Role_name] -> Key "EXPPRJTAB" / plinktemplates.cfg ”.
Displayed bitmap (when selecting the role in PARTdataManager)
For details see Section 5.7.5.1.1, “ Dialog box for role selection - plinkgroups.cfg -> Block [Role name] -> Keys "DESC" and "IMAGE" ”.
Comma-separated list of catalogs to hide in this role
For details see Section 5.7.5.1.10, “ Catalogs to be suppressed / Show only these catalogs - plinkgroups.cfg -> Block [role name] -> Key "HIDELIST" / "EXCLUSIVELIST" ”.
[71] As a rule, the filter and display conditions are set for PARTdataManager or 3Dfindit Enterprise are set; however, the effect is generally cross-module.

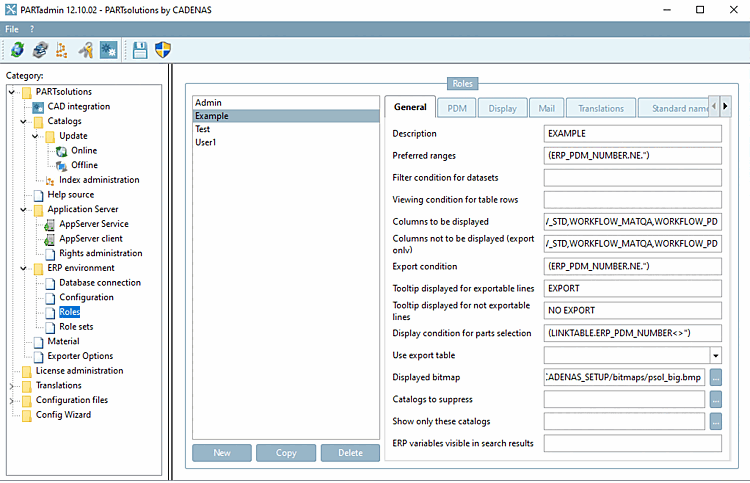

![PARTadmin tab page "General [General] "](resources/img/img_4d8f943aab694d99b202c2dd900ebaef.png)
