3.1.10.1.  "2D view" dialog box

3.1.10.1.1. Standard views
3.1.10.1.1.1. Current view
3.1.10.1.2. Combination views
3.1.10.1.2.1. Render mode
3.1.10.1.2.2. Scale and Paper formats
3.1.10.1.2.2.1. Scale, position sketch elements in 2D view
3.1.10.1.2.2.2. Adjust paper format in 2D view
3.1.10.1.3. Settings / visibility
3.1.10.1.4. Alternative 2D size Optimize drawing view on paper size /
3.1.10.1.5. Add dimensioning in PARTdataManager before the export
3.1.10.1.6. Transfer special derivations or technical views to CAD system

Selection and settings within the 2D view window, create the basis for the display of the object in your CAD system.

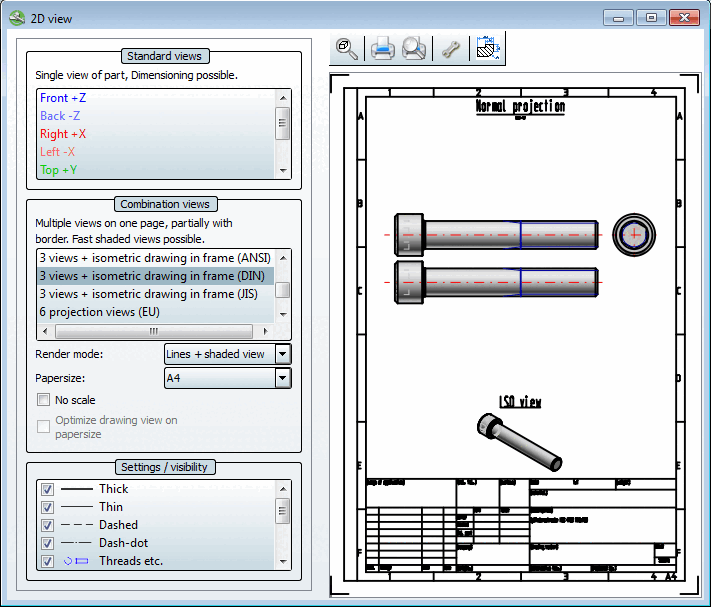

Dialog window 2D view

Dialog window 2D view

As soon as you click on a view, the 2D derivation of the part is created.

[Note]Note

An exception for Combination views is the option Shaded view. Here the 2D derivation is only created in case of an export to the CAD system. See more under Section 3.1.10.1.2, “ Combination views ”.

-> Once all settings have been made, click on Transfer to CAD.

The settings area of the dialog page is subdivided as follows:

The individual areas are explained in the following sections.
