Before you export a 2D derivation into the CAD system, you can add a dimensioning.
Hereto proceed as follows:
Select a standard view such as Front +Z for example.

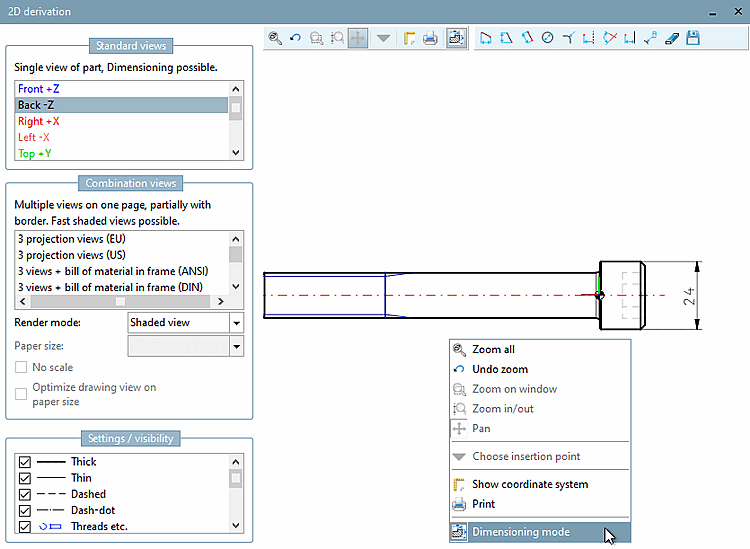

Click the Dimensioning mode command in the context menu of the view.
A detailed description of the functions in dimensioning mode you can find under Section 3.1.10.1.5, “Add dimensioning in PARTdataManager before the export ”.
Set the desired dimensioning:
Click on Export to CAD .
The part is transferred to CAD with dimensioning.
