Optimize drawing view on sheet [Optimize drawing view on paper size] is a special feature for catalogs with parts that might look bad in the 2D derivation due to their proportions.

This happens, for example, with very long cylinders. The 2D derivation would then look more like a line than a cylinder.

If the component has an additional shortened view, the user can choose between standard view and shortened view in the 2D view dialog [2D view] using the Optimize drawing view on sheet [Optimize drawing view on paper size] checkbox. Otherwise, the checkbox is inactive.

	Note
	The attributes remain unchanged.

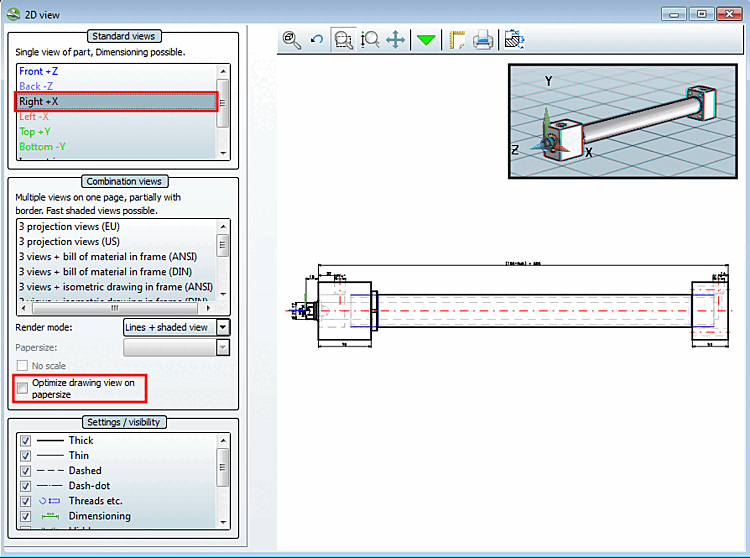

"Optimize drawing view on sheet [Optimize drawing view on paper size] " not activated

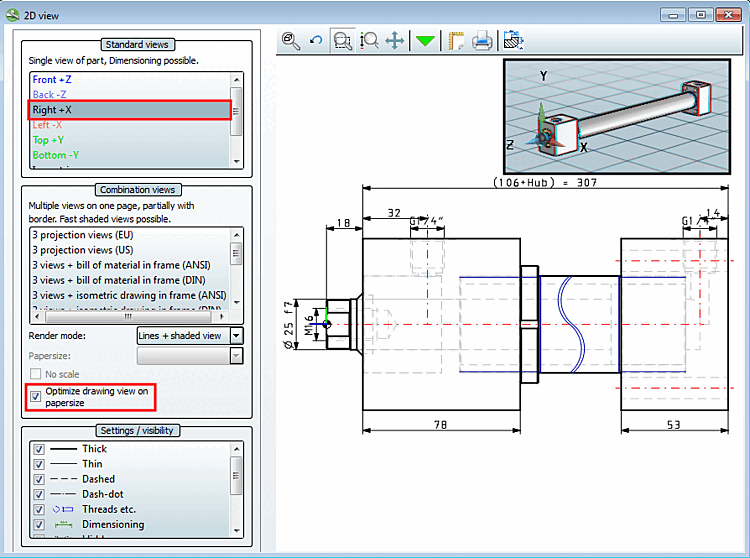

"Optimize drawing view on sheet [Optimize drawing view on paper size] " activated
