3.1.9.5. Export in transfer formats
3.1.9.5.2.
2D transfer formats
|  |
| Prev | Next |
The following 2D transfer formats are available:

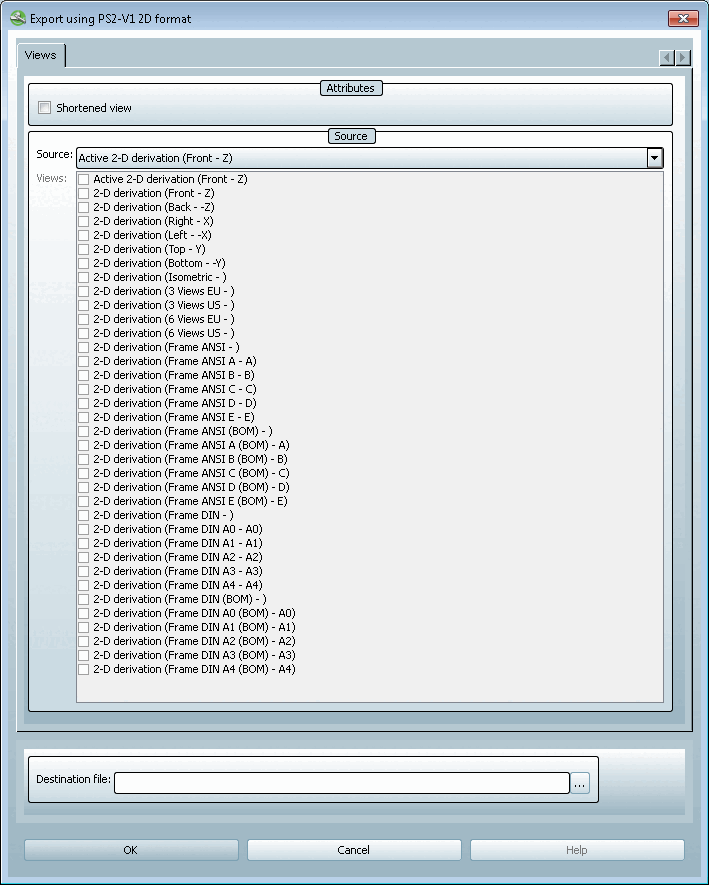

After clicking on the desired format, the Export in PS2-V1/2 2D format dialog box opens.
The following options are available:
Shortened view: If you want to export the shortened view, activate the checkbox.
You can find detailed information on this under Section 3.1.10.1.4, “ Optimize alternative 2D size / drawing view on sheet ”.
Source: There are 2 options to choose from in the list field:
At the desired views activate the checkbox.
Detailed information on the individual views [Views] can be found at Section 3.1.10.1, “ 2D view" dialog box ”.
The selection area is only active if the Selected views option has been selected under Source.
Target file [Destination file]:
Use Browse to select the target file [Destination file] under which you want to save the component/assembly.
See Section 3.1.9.2.2, “ Filter " tab page - Unit conversion ”.
