2.2.8.2. Structure of the "AttributeMapping(is3d) " block

The structure of the AttributeMapping(is3d) block is described below. The block can be found in the interface files if<cadname>.cfg.

The AttributeMapping(is3d) block contains sections (this refers to a group of keys ). The individual sections are identified with 00^[50]01, 02, etc. are incremented.

Structure of a section:

Attr_Content (optional; however, either "Attr_Content" or "Attr_CopyFrom" must be present, or both)
The key value refers to a block of the same name in the configuration file.^[51]

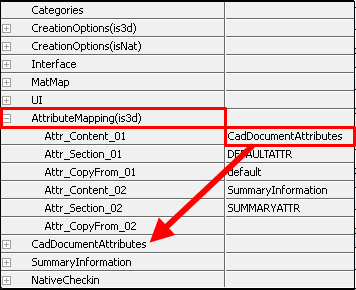

PARTadmin -> Category Configuration files -> Configuration file if<cadname>.cfg

In the added block (tabbed page) "CadDocumentAttributes" custom or CAD-specific attributes can be declared.
If the value is not set the content can be specified by „CopyFrom“. If both ("CopyFrom" and "Content") is specified the content of both is merged in form of a list.

Attr_CopyFrom (optional; either "Attr_Content" or "Attr_CopyFrom" must be present, or both)

If the key exists and contains a value then this means that the PARTsolutions default attributes are transferred to the CAD system.

The following values are possible:

default: The attributes in the $CADENAS_LANGUAGE are transferred.
Specify the language (german, english, french, etc.): The standard attributes are transferred in the specified language.

Note
If there is no translation for an attribute in the specified language, no attribute is transferred (not even the one from the $CADENAS_LANGUAGE language).
No entry: No standard attributes are transferred. (To explicitly pass certain attributes, please see the information in the following sections)

	Note
If there is no translation for an attribute in the specified language, no attribute is transferred (not even the one from the $CADENAS_LANGUAGE language).

	Note
The set of several languages is also possible. In some CAD systems this is already default. In other CAD systems the needed keys have to be added. Attr_Section_02="Der jeweilige Systemkey" Attr_CopyFrom_02=english Attr_Prefix_02=CNS_ENG_ Attr_Section_03="Der jeweilige Systemkey" Attr_CopyFrom_03=italian Attr_Prefix_03=CNS_ITA_ Attr_Section_04="Der jeweilige Systemkey" Attr_CopyFrom_04=japanese Attr_Prefix_04=CNS_JP_ See Section 1.7.1.4, “Editing blocks and keys”.

Note

The set of several languages is also possible. In some CAD systems this is already default. In other CAD systems the needed keys have to be added.

Attr_Section_02="Der jeweilige Systemkey"
Attr_CopyFrom_02=english
Attr_Prefix_02=CNS_ENG_
Attr_Section_03="Der jeweilige Systemkey"
Attr_CopyFrom_03=italian
Attr_Prefix_03=CNS_ITA_
Attr_Section_04="Der jeweilige Systemkey"
Attr_CopyFrom_04=japanese
Attr_Prefix_04=CNS_JP_

See Section 1.7.1.4, “Editing blocks and keys”.

Attr_Section
A system key (the target [e.g. tab page] in CAD ) that should not be modified!
Attr_Prefix (optional)
A prefix can be used (e.g. CNS_). If several languages are transferred then using prefixes for differentiation makes sense in any case.

	Note
The structure of other tabbed pages is described specifically for each CAD system. Click on the desired link to jump in the CAD specific chapter. Section 2.3.1.2, “ Attribute mapping in AutoCAD ” Section 2.3.4.3, “ Block [AttributeMapping]” Section 2.3.5.4, “ Block [AttributeMapping(is3d)]” Section 2.3.6.3, “ Attribute mapping in Inventor ” Section 2.3.7.5, “ Block [AttributeMapping(is3d)]” Section 2.3.8.2, “ Attribute mapping in Creo ” Section 2.3.9.4, “ Attribute mapping in Solid Edge ” Section 2.3.10.3, “Attribute mapping in SolidWorks ”

Note

The structure of other tabbed pages is described specifically for each CAD system.

Click on the desired link to jump in the CAD specific chapter.

^[50]The first counter can be 00 or 01.

^[51]In the following illustration, this is "CadDocumentAttributes" as an example.
