In the AttributeMapping(is3d) block, you determine whether the 3Dfindit standard attributes (geometric, NT, NN, LINA, etc.) and all fields of the link database (if an ERP link exists) are to be transferred to the CAD system and, if so, in which language(s).

Below you will find the most important information for your CAD system. Basic information on attribute mapping can be found under Section 3.2.8, “Attribute mapping ”.

Once the attributes have been transferred, they are then available on the file information dialog page and in the parts list.

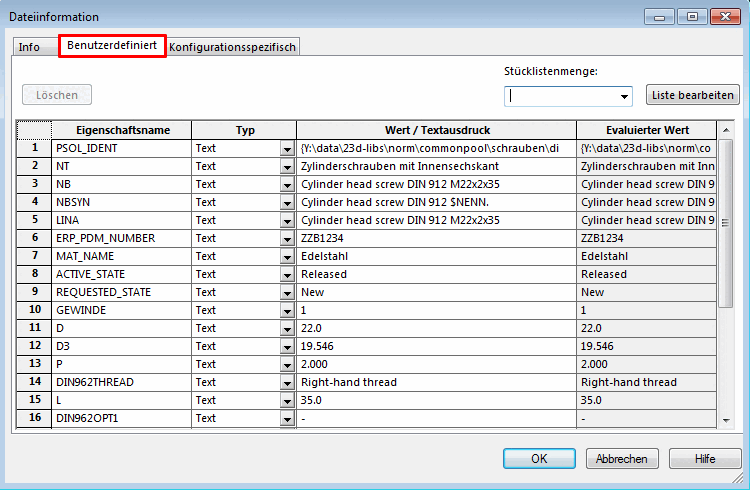

"File information" -> tabbed page "Custom"

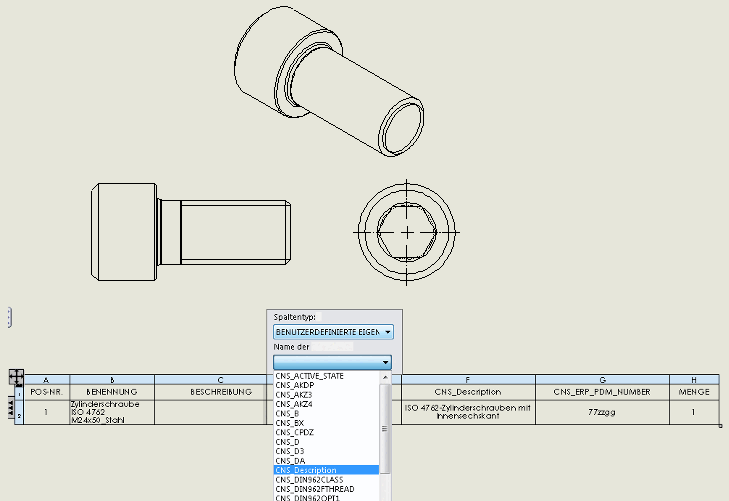

3Dfindit attributes in the parts list table

Attribute mapping is controlled by the following blocks:

The following describes the individual blocks:

	Note
	Administrator rights are required to edit the settings!
