4.7.3.3. Roles: Tabbed page "Display"

4.7.3. Create and configure roles 4.7.3.3. Roles: Tabbed page "Display"
Prev	Next

4.7.3.3.1. Status indicating icons in table - plinkgroups.cfg -> Block [<Role_name>] - Key "BMPCONDITION0"
4.7.3.3.2. Status colors for catalog index - plinkgroups.cfg -> Block [Role_name] -> Key "COLORCONDITIONTREE<number>"

PARTadmin -> Category -> PARTsolutions -> ERP environment -> Roles

On the Display tabbed page, the following can be defined:

Status indicating bitmaps for table view
Define rules, with which status bitmaps / colors the individual characteristics in the table shall be marked.^[64]

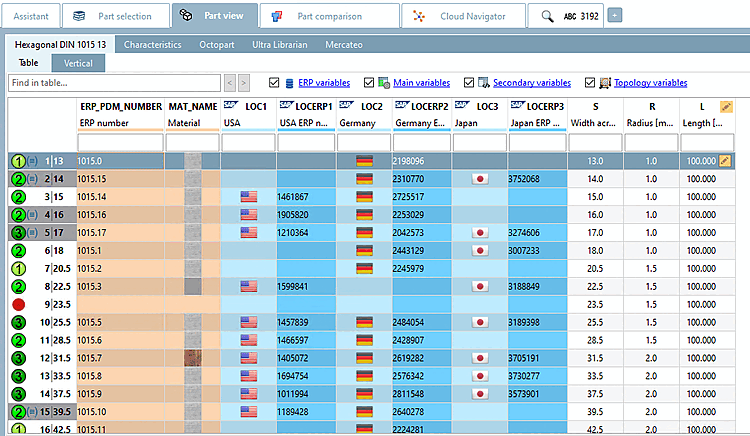

Part selection table view

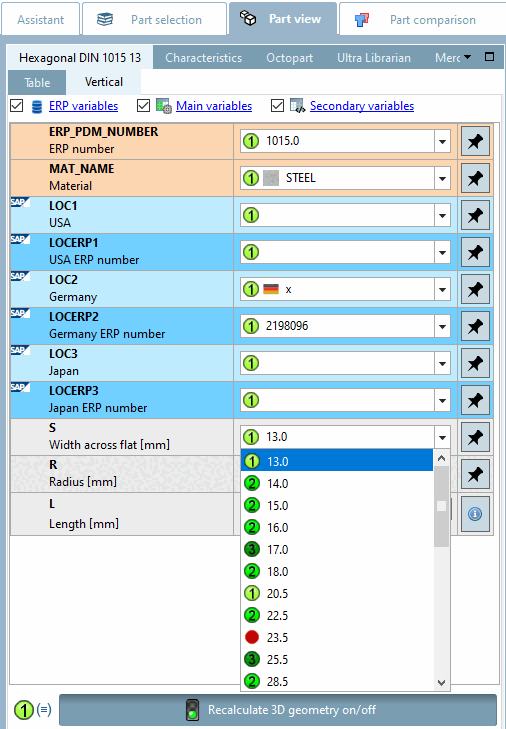

Part selection list view: Status bitmaps in the variables list field

Details can be found under Section 4.7.3.3.1, “ Status indicating icons in table - plinkgroups.cfg -> Block [<Role_name>] - Key "BMPCONDITION0" ”.
Status colors for catalog index
Define rules, in which colors (as much as you like) directories and project symbols in PARTdataManager in the catalog index shall be shown.^[65]

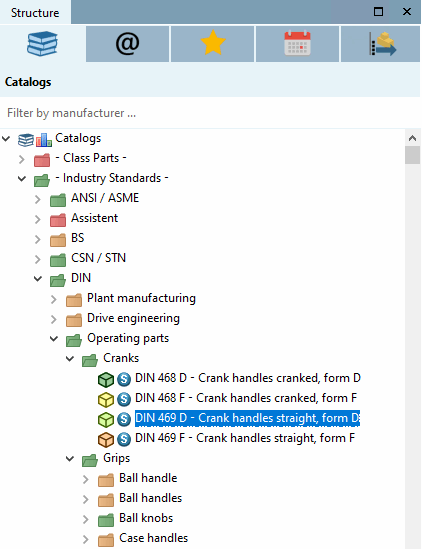

Status colors for catalog index in PARTdataManager

Details can be found under Section 4.7.3.1.3, “ Display condition for parts selection - Colored catalog index - plinkgroups.cfg -> Block [Role_name] -> Key "CONDITIONTREE" ”.

^[64]The rule definition under General index page -> Export condition only enables a green/semi-transparent display.

^[65]The rule definition under General tabbed page -> Display condition for parts selection just enables a Green/Red (or Green/Transparent) depiction.
