4.7.4. Create and configure roles
4.7.4.2.

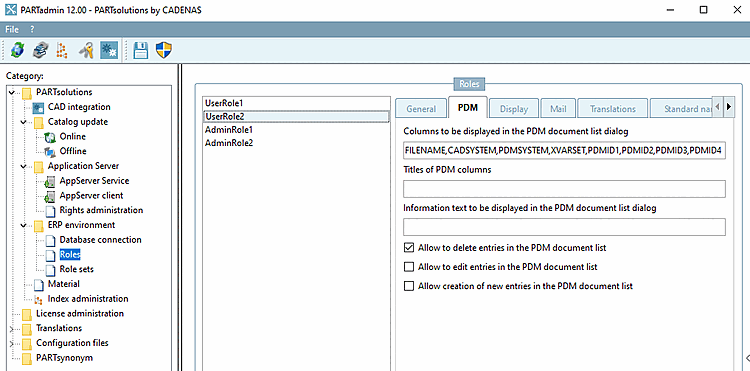

Roles: PDM" tab page
|  |
| Prev | Next |
PARTadmin -> Category -> PARTsolutions -> ERP environment -> Roles
On the PDM tab page, you can set how the PDM ID information dialog should look.
Columns to be displayed in the PDM document list [Columns to be displayed in the PDM document list dialog]
An entry can be made optionally. Column names are entered separated by commas.
If there is no entry, the following columns are displayed by default:
PDMID1,PDMID2,PDMID3,PDMID4,PDMID5,XVARSET,CADSYSTEM,PDMSYSTEM,GEOFEATURES,NBDEFAULTLANG
Information text for the PDM document list [Information text to be displayed in the PDM document list dialog]
Allow deletion of lines in the PDM document list [Allow user to delete rows in the PDM document list dialog]
If the
checkbox is deactivated, the Delete button
is hidden.
Details can be found under Section 3.2.9, “Show CAD documents (PDM-ID) in 3Dfindit / PARTdataManager ”.
