The following integration description is valid for the following versions:

NX 2007, 2206, 2212, 2306, 2312, 2406, 2412, 2506

	Note
	Special notes: NX 2306 2306.5001 Monthly (Sept. 2023) is the first 2306 recommended subversion (able to generate PSOL models completely [Blend feature]).

	Important
	When using NX on virtual machines (VMs), difficulties can arise as NX itself can cause crashes due to the missing vGPU. The CADENAS interface itself is not involved in this.

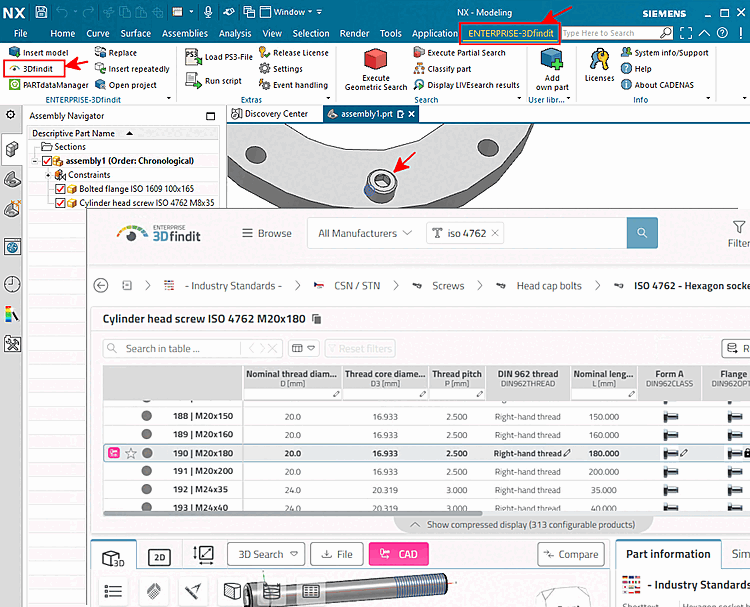

Call up 3Dfindit via menu item "ENTERPRISE-3Dfindit" -> sub-item "3Dfindit" and export part to CAD
