3.4.7.2.7. Add 3Dfindit commands to the NX context menu

3Dfindit commands can be added to the NX context menu.

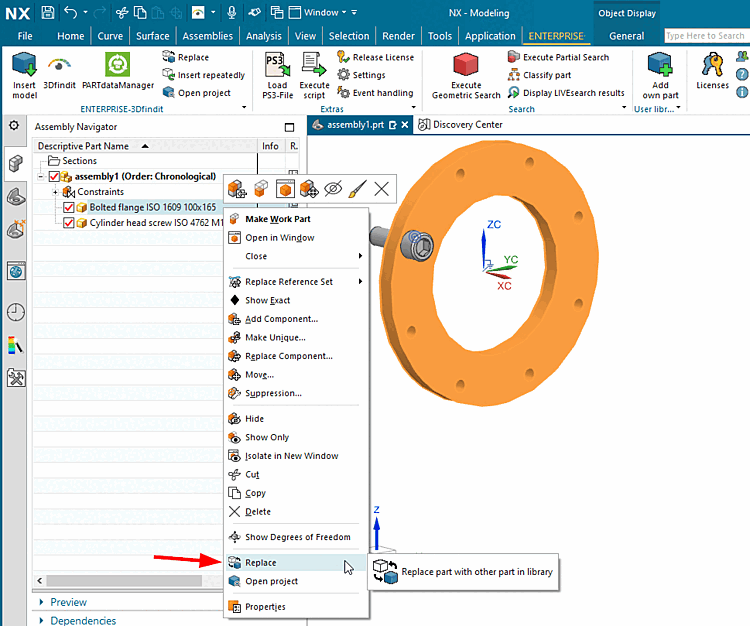

NX context menu command "Replace [Replace] "

NX context menu command "Replace [Replace] "

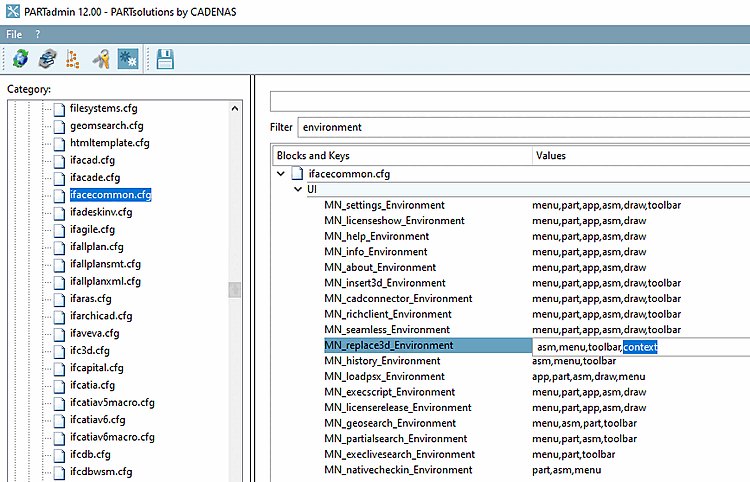

By default, the keyword "context" is entered for Replace in the configuration file ifacecommon.cfg, in the block [UI], at MN_replace3d_Environment. If this is present, the corresponding context menu command is generated automatically.

MN_replace3d_Environment

MN_replace3d_Environment
