3.4.7.2.5. Pattern
features
During export
pattern features are generated.
Features in
particular:

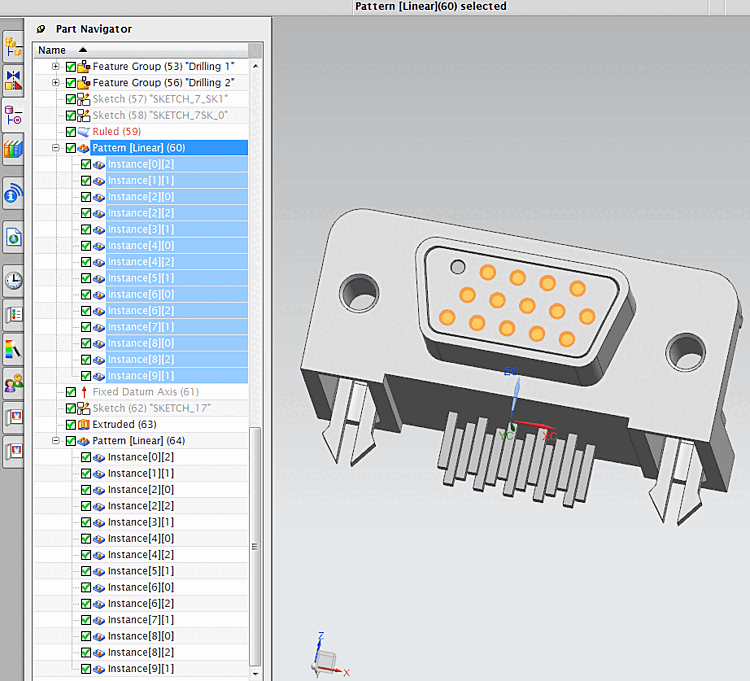

Sweep feature
("ruled") patterns are recognized as such.
Patterns
created from positive features will now also be recognized (only for the
"place on circular edge" strategy for now).
Support for
non-rectangular linear pattern arrays.
Unneeded
feature instances will now be deleted instead of suppressed, so that
only the features specified in the ps3 will be present in the resulting
model.
"Sweep patterns" can only be created with the new pattern features.
![[Note]](images/note.png) | Note |
|---|
If instances
are placed in a pattern, then while inserting parts a query appears,
whether the part shall be inserted in the selected instance or in the
pattern (meaning all instances of the pattern).
Any hole can be selected and the screw is placed in all instances. |
