Create indexes

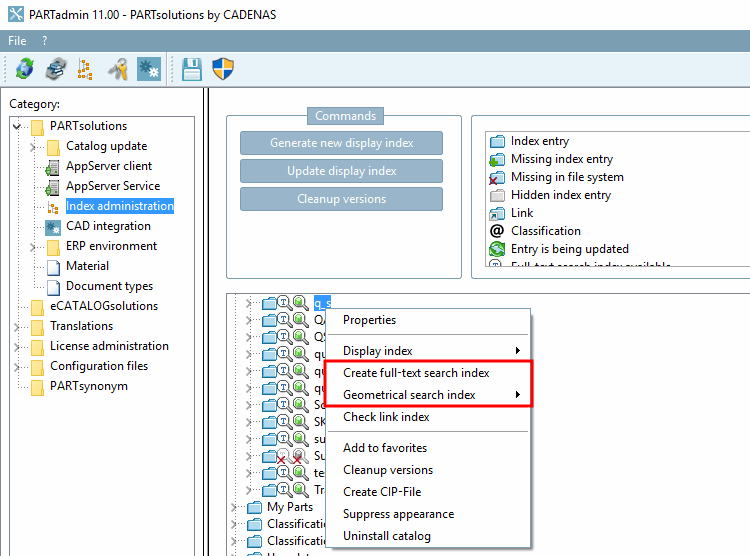

Create the indexes for full text search [Full-text search] and geometric search [Geometric Search].

Note The display index is created automatically.

-> All search methods are then available:

For example, you can now also search for article numbers or material master numbers, i.e. all textual values in the table.

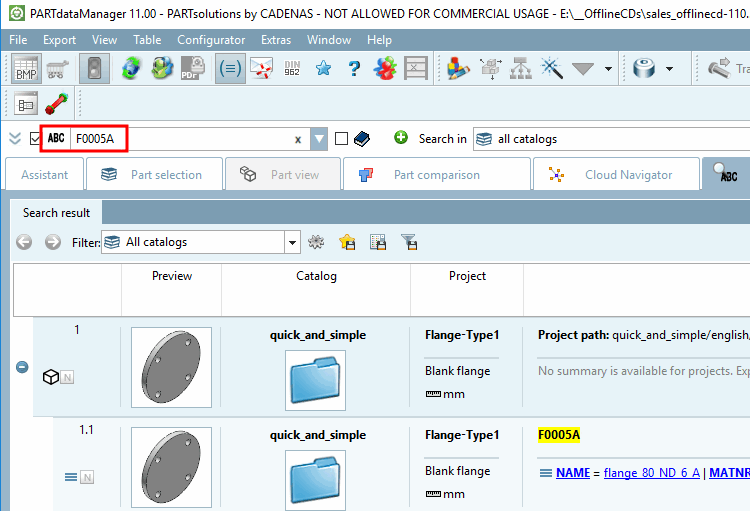

Full text search [Full-text search]

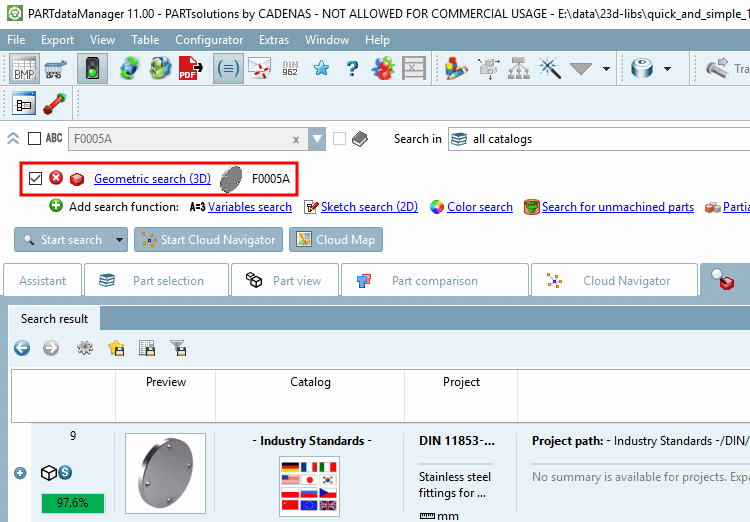

Geometric search (3D)

Technical views

Subsequent storage of technical views in the form of pra files is possible.

Mixed catalogs

Mixed catalogs are permitted. This means, for example, that a catalog may contain a chapter "A" with parts or assemblies that were created with eCATALOGsolutions and a chapter "B" with parts that were created using the Import neutral formats in batch run [Batch import neutral formats (Quick and Simple)] command (Quick and Simple) [Batch import neutral formats (Quick and Simple)].

	Important
	Mixed assemblies are not permitted. This means that projects that were created using Import neutral formats in batch run (Quick and Simple) [Batch import neutral formats (Quick and Simple)] may not be used in assemblies together with normally modeled projects.
