5.7.
Set up ERP environment
5.7.3.
Configuration
|  |
| Prev | Next |

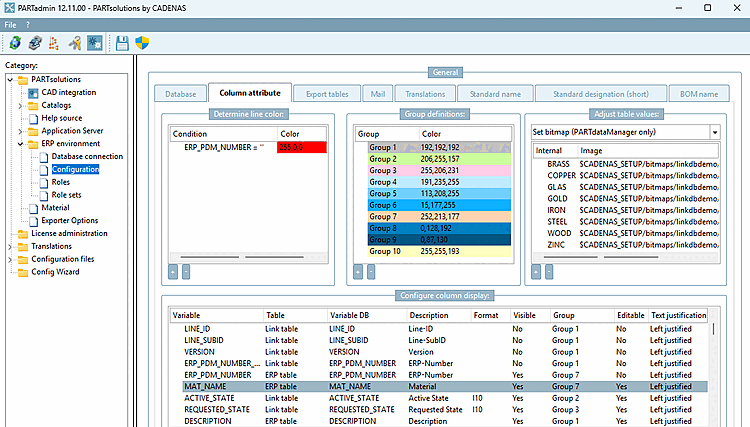

PARTadmin -> Category "ERP environment [ERP environment]" -> Configuration (here exemplarily opened with Tabbed page "Column settings [Column attribute]")
The dialog page is divided into the following Tabbed pages:
Database: The same setting options can be found in PARTlinkManager under Extras menu [Extras] -> Configure ERP environment -> Tabbed page "Database [Database]" -> Tables dialog area. See Section 5.27.4.3.2.3, “ Database tab page ”.
Column settings [Column attribute]: The same setting options can be found in PARTlinkManager under Extras menu [Extras] -> Configure ERP environment -> Tabbed page "PARTlinkManager settings [PARTlinkManager preferences]". See Section 5.11, “ Configure column display - plinkcommon.cfg -> Block [LINKDBFIELDS] - ”.
Export tables: The same setting options can be found in PARTlinkManager under Extras menu [Extras] -> Configure ERP environment -> Tabbed page "Export tables [Export tables]" -> Tables dialog area. See Section 5.7.5.1.9, “ Release certain directories for export - plinkgroups.cfg -> Block [Role_name] -> Key "EXPPRJTAB" / plinktemplates.cfg ”.
Mail: The same setting options can be found in PARTlinkManager under Extras menu [Extras] -> Configure ERP environment -> Tabbed page "PARTdataManager settings [PARTdataManager preferences]". See Section 5.18.6, “E-mail settings / plinkcommon.cfg -> Block [MAIL]”.
Translations: The same setting options can be found in PARTlinkManager under Extras menu [Extras] -> Configure ERP environment -> Tabbed page "Translations [Translations]" See Section 5.27.4.3.2.5, “Tabbed page Translations ”.
Standard designation [Standard name]: The same setting options can be found in PARTlinkManager under Extras menu [Extras] -> Configure ERP environment -> Tabbed page "Standard designation [Standard name]". See Section 5.27.4.3.2.6, “Tabbed page Standard designation , Standard designation (short) , Parts list designation ”.
Standard description (short) [Standard designation (short)]: The same setting options can be found in PARTlinkManager under Extras menu [Extras] -> Configure ERP environment -> Tabbed page "Standard designation (short) [Standard designation (short)]". See Section 5.27.4.3.2.6, “Tabbed page Standard designation , Standard designation (short) , Parts list designation ”.
Parts list designation [BOM name]: The same setting options can be found in PARTlinkManager under Extras menu [Extras] -> Configure ERP environment -> Tabbed page "Parts list designation [BOM name]". See Section 5.27.4.3.2.6, “Tabbed page Standard designation , Standard designation (short) , Parts list designation ”.
![PARTadmin -> Category "ERP environment [ERP environment]" -> Configuration (here exemplarily opened with Tabbed page "Column settings [Column attribute]")](resources/img/img_631f1cbdcd42470bab702faa95398e95.png)
