1.3.13. Register page "Transfer to CAD "

In the list field under Reaction under "Transfer to CAD" [Reaction on "export to CAD"] you will find the following two options:

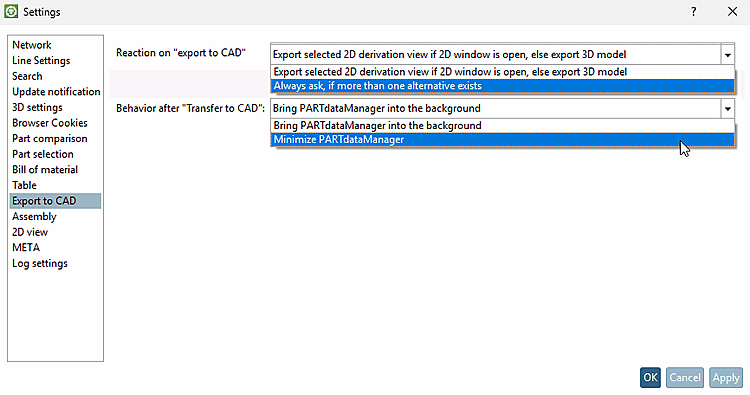

Tab page "Transfer to CAD [Export to CAD] "

Transfer active 2D derivation if 2D window is open, otherwise transfer of 3D model [Export selected 2D derivation view if 2D window is open, else export 3D model] (default setting)
For 2D CAD systems, click on the 2D derivation button to create the 2D derivation 2D deriv [2D derivation] ation button.
-> The 2D view dialog box opens. Select the desired view there.
Various functions are also available, such as the dimensioning mode [Dimensioning mode] ^[3] are available. Further information on this can be found under Section 3.1.10.4, “Context menu and buttons "2D view" window ” in ENTERPRISE 3Dfindit (Professional) - User.
The Technical views selection is not available in this mode.

Note
If the button Transfer to CAD button is clicked without a 2D derivation having been specified beforehand, a default derivation is transferred.
Always ask if several options are available [Always ask, if more than one alternative exists]
For 2D CAD systems or CAD systems with the 2D option, clicking on the Transfer to CAD button, the Select view to be transferred [Choose view to pass...]... dialog box opens. dialog box opens, regardless of whether the 2D view dialog box (opened using the 2D derivation ) is open.
If the Select view to be transferred. [Choose view to pass...].. dialog box is open, the selection made there is always transferred (even if something else is selected in the 2D view dialog box). dialog box is open, the selection made there is always transferred (even if something else is selected in the 2D view dialog box.
With a "3D CAD only", the Select view to be transferred. [Choose view to pass...].. dialog box is not opened. dialog box is not opened.
In the dialog box Select view to be transferred. [Choose view to pass...].. dialog box, technical views [Technical views] (if available) can also be selected.

	Note
	The reaction [Reaction on "export to CAD"] setting for "Transfer to CAD" [Reaction on "export to CAD"] is handled differently depending on the CAD system used. CAD system has only ONE environment -> So only 2D or 3D is active. (valid for SW,SE,NX,OSDM,INV) The setting has NO effect. CAD system can handle multiple environments. -> Then the selection dialog will appear. (valid for Pro-E and AutoCAD) The setting takes effect.

In the list field under Behavior after "Transfer to CAD" you will find the following two options:

PARTdataManager into the background [Bring PARTdataManager into the background]:
Minimize PARTdataManager:

Detailed information on 2D derivation can be found under Section 3.1.10, “ Create 2D derivation ” in ENTERPRISE 3Dfindit (Professional) - User.

^[3]Create your own dimensions before transferring them to the CAD system
