1.7.8.2.3.2. menuvisibility_PARTProject.cfg: Action names of menus, menu items, toolbars and buttons

1.7.8.2.3. Tweak PARTproject user interface 1.7.8.2.3.2. menuvisibility_PARTProject.cfg: Action names of menus, menu items, toolbars and buttons
Prev	Next

In this section you can find the PARTproject action names of menus and menu items, toolbars and buttons.

	Note
	Context menu commands cannot be controlled by "tweak" actions.

Menus

Menu name	Action name
File	FileMenu
Versioning system	QAMenu
ERP	ErpMenu
Extras	ExtrasMenu
Window	WindowMenu
Help	HelpMenu

Tweak commands of the single menus and toolbars:

Note

	Note
Structural layout of all context menu commands happens in `menustructure_PARTproject.cfg`. The visibility of commands (menu item, button, context menu command) has to be changed in the configuration file `menuvisibility_PARTproject.cfg`. Here, in this section you can find the respective action names (key names) for menu items and buttons. In PARTadmin -> Configuration files, simply change the values between true and false. The same action name can be used for a menu item and a button!

Structural layout of all context menu commands happens in menustructure_PARTproject.cfg.

The visibility of commands (menu item, button, context menu command) has to be changed in the configuration file menuvisibility_PARTproject.cfg. Here, in this section you can find the respective action names (key names) for menu items and buttons. In PARTadmin -> Configuration files, simply change the values between true and false.

The same action name can be used for a menu item and a button!

File menu and Standard toolbar

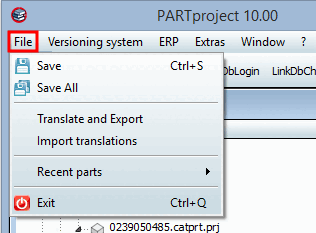

File menu

Standard toolbar

Icon	Display text or tooltip	Key name in `menuvisibility_partproject.xml`	Respective specification under `menustructure_PARTProject.cfg`
	Save	FileSave	FileMenuContent StandardToolbarContent
	Save All / Save all Files	FileSaveAll	FileMenuContent StandardToolbarContent
	Translate and Export	FileExportTrans	FileMenuContent
	Import translations	FileImportTrans	FileMenuContent
	Recent parts	actionRecentFilesList See menustructure_PARTProject.cfg, block [hasSubMenuActions].	FileMenuContent
	Exit	FileExit	FileMenuContent
	Text search for part	FileSearch	StandardToolbarContent
	Update index	UpdateIndex	StandardToolbarContent
	Fetch publication status...	ShowPublishingState	StandardToolbarContent

The creation of the structure happens in the configuration file menustructure_PARTProject.cfg.

ERP menu /Link database toolbar

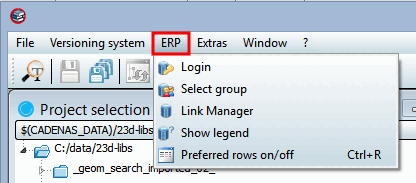

ERP menu

Link database toolbar

The same action name can be used for a menu item and a button!

Log on to link database / Login	LinkDbLogin	ErpMenuContent LinkDatabaseToolbarContent
Select group	LinkDbChangeGroup	ErpMenuContent LinkDatabaseToolbarContent
Launch PARTlinkManager / Link Manager	CallLinkMgr	ErpMenuContent LinkDatabaseToolbarContent
Show legend	LinkDbShowLegend	ErpMenuContent LinkDatabaseToolbarContent
Preferred rows on/off	PreferredRanges	ErpMenuContent LinkDatabaseToolbarContent

The creation of the structure happens in the configuration file menustructure_PARTProject.cfg. See ERP menu or Linkdatenbank toolbar.

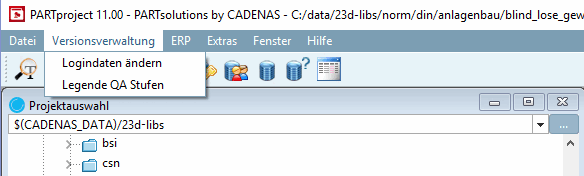

Versioning system menu
Change login
QALogin

QAMenuContent
Legend QA levels QALegend
QAMenuContent
The creation of the structure happens in the configuration file menustructure_PARTProject.cfg.

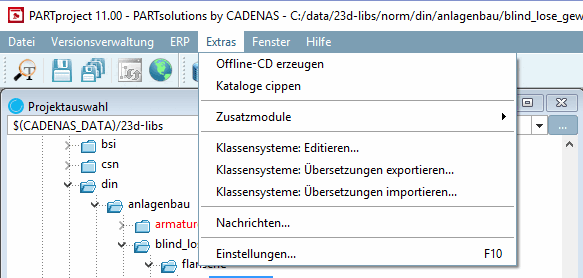

Extras menu

Create offline CD	ExtrasOfflineCD	ExtrasMenuContent
CIP Catalog	ExtrasCipCatalog	ExtrasMenuContent
Additional modules	actionPluginList Submenus are created in `menustructure_PARTProject.cfg`. See Section 1.7.8.2.2.1.2, “ Block [hasSubMenuActions] ”.	ExtrasMenuContent
Class systems: edit...	ExtrasEditClassSystem	ExtrasMenuContent
Class systems: export translations...	ExtrasExportCSystemTranslation	ExtrasMenuContent
Class systems: Import translations...	ExtrasImportCSystemTranslation	ExtrasMenuContent
Messages...	ExtrasMessageList	ExtrasMenuContent
Select mode currently not used	ModePreferences	ExtrasMenuContent
Settings...	ShowPreferences	ExtrasMenuContent

The creation of the structure happens in the configuration file menustructure_PARTProject.cfg.

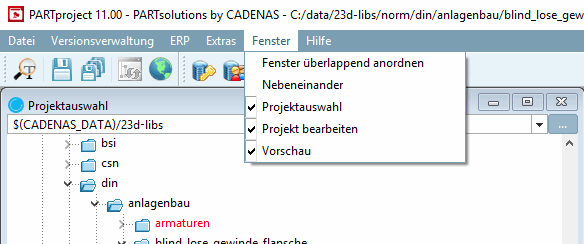

Window menu

Cascade windows	actionWindowCascade	WindowMenuContent
Tile	WindowsTile	WindowMenuContent
Project selection	WindowsTree	WindowMenuContent
Edit project	WindowsEdit	WindowMenuContent
Preview	WindowsPreview	WindowMenuContent

The creation of the structure happens in the configuration file menustructure_PARTProject.cfg.

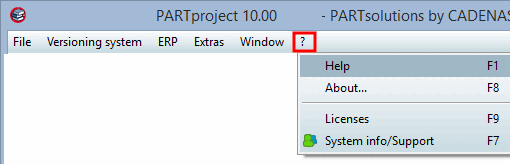

Help menu

Help	HelpHelp	HelpMenuContent
About	HelpAbout	HelpMenuContent
Licenses	HelpLicenses	HelpMenuContent
Show system information/send to support	HelpSysInfo	HelpMenuContent

The creation of the structure happens in the configuration file menustructure_PARTProject.cfg.

	Change login	QALogin	QAMenuContent
	Legend QA levels	QALegend	QAMenuContent
