3.3.9.4.5. Blocks [SummaryInformation] and [DocumentSummaryInformation]

	Note
The blocks "SummaryInformation" and "DocumentSummaryInformation" exist in twofold implementation: [SummaryInformation(isGerman)] [SummaryInformation(isEnglish)] [DocumentSummaryInformation(isGerman)] [DocumentSummaryInformation(isEnglish)] One key for the German and one key for the English Solid Edge interface. Please not the different field descriptions, even if you are applying further keys yourself.

Note

The blocks "SummaryInformation" and "DocumentSummaryInformation" exist in twofold implementation:

One key for the German and one key for the English Solid Edge interface.

Please not the different field descriptions, even if you are applying further keys yourself.

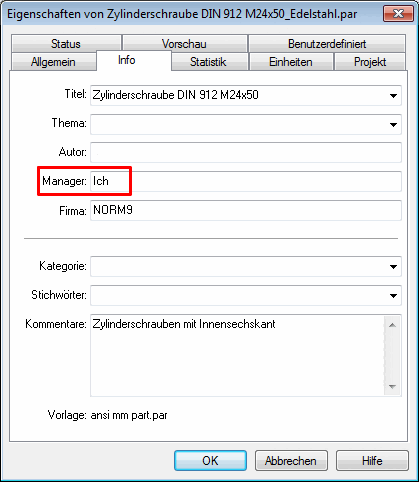

The settings under SummaryInformation and DocumentSummaryInformation appear in Solid Edge under dialog page File properties -> Info tab.

File properties -> Tabbed page "Info"

	Note
You want to apply more or other attributes than the ones already existing i the user interface? Information can be found under Section 3.3.9.4.6, “Fill additional fields in Solid Edge with 3Dfindit attributes ”. General information about applying keys can be found under Section 1.7.1.4.3, “Editing blocks, keys and key values”.

Note

You want to apply more or other attributes than the ones already existing i the user interface?
