1.7.4.5.  eol.cfg and eolphases.def

1.7.4.5.1. Open part possible: Yes/No AND/OR Export possible: Yes/No
1.7.4.5.2. Store texts for EOL phases
1.7.4.5.3. Store translations
1.7.4.5.4. Examples
1.7.4.5.4.1. Icons for EOL phases
1.7.4.5.4.2. Display of texts in tooltips and dialogs

The Configuration file eol.cfg controls the display to open and export parts based on the settings in PARTproject under Settings > General > End of Life [Expiration date (End of Life)] or the Settings in the json editor.

Setting in PARTproject

  1. Date: This refers to the "End of Life" date.

  2. Lock after expiry [Block after expiration]: Yes / No (default is "No")

  3. Note before expiry (in days) [Message before expiration (In days)]

  4. Replacement part specified (optional)

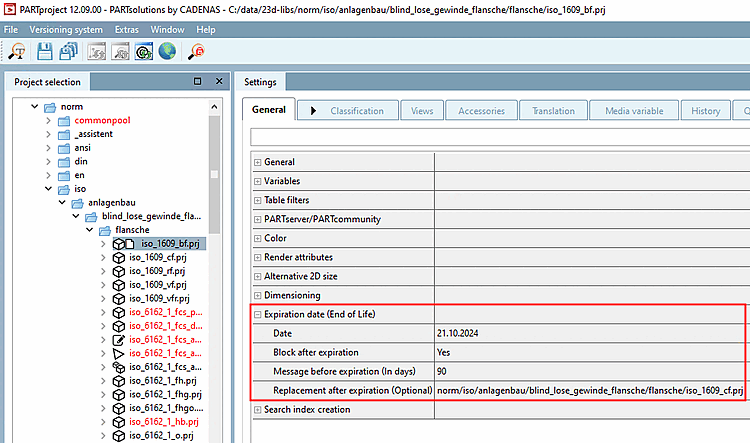

PARTproject > Expiry date (End of Life) [Expiration date (End of Life)]: In this example, the part has already expired.

PARTproject > Expiry date (End of Life) [Expiration date (End of Life)]: In this example, the part has already expired.

In the following sections describes how the inputs from PARTproject are created using the specifications of eol.cfg be implemented.
