1.7.4.5.1. Open part possible: Yes/No AND/OR Export possible: Yes/No

In the event that that a product has expired can be eol.cfg in the configuration file whether the opening of the product and/or an export to CAD should still be possible or not.

All setting combinations of the "EolAllowOpen" and "EolAllowExport" keys are possible.

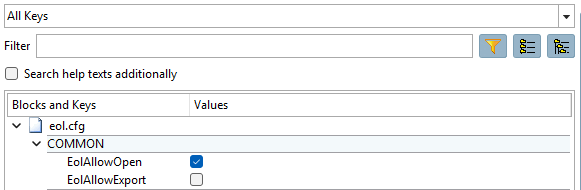

eol.cfg

A role-specific setting is also possible:

[COMMON]
[COMMON(UserRole1)]
[COMMON(UserRole2)]

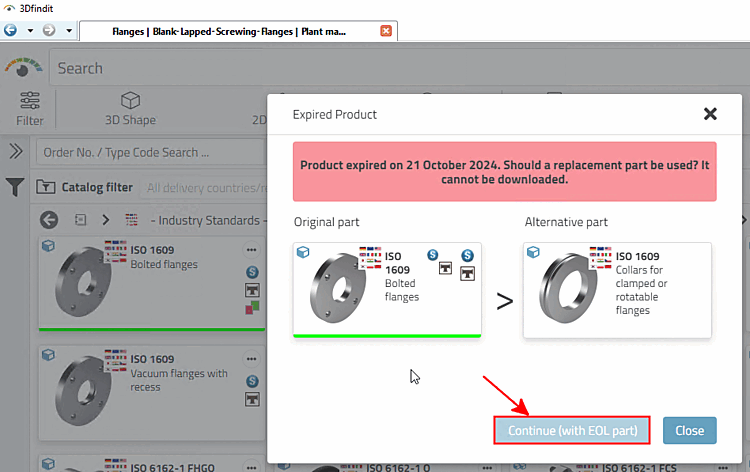

Unable to open part: The Next [Continue (with EOL part)] button (with EOL part) [Continue (with EOL part)] is inactive.
Open part possible: The Next [Continue (with EOL part)] button (with EOL part) [Continue (with EOL part)] is active.

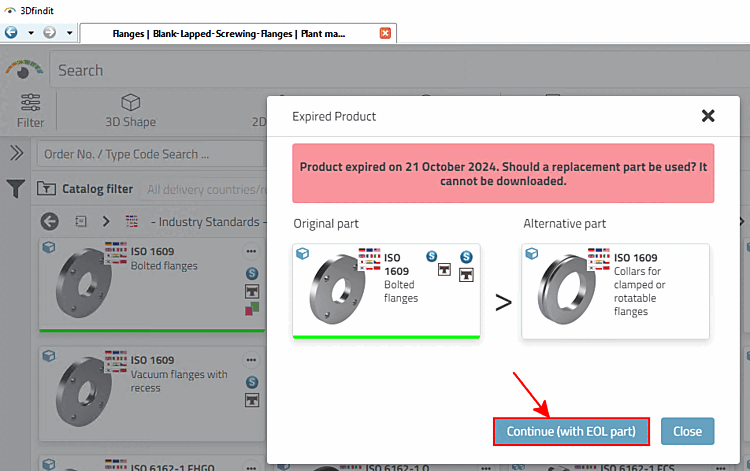

Example from 3Dfindit

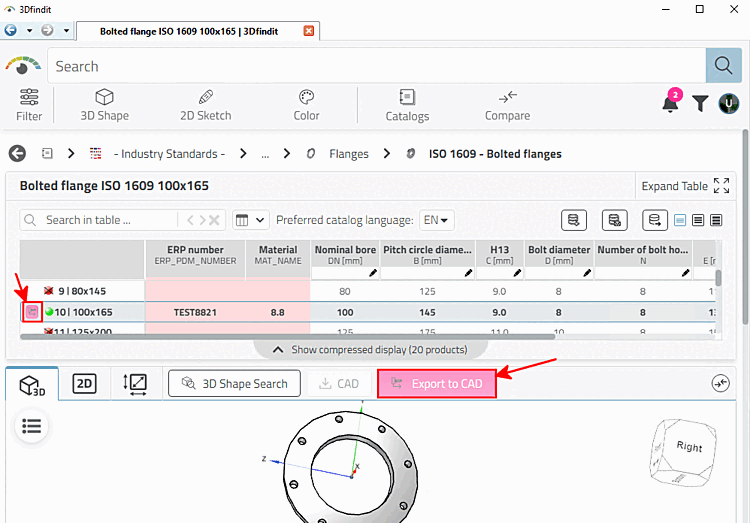

Part export not possible: The Export to CAD button is inactive.

3Dfindit: Button inactive

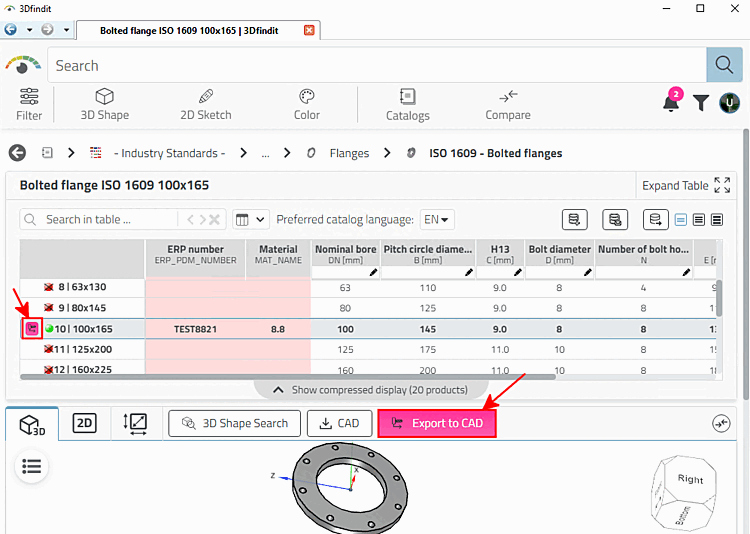

Part export possible: The Export to CAD button is active.

3Dfindit: Button active
