1.3.8. Parts selection

1.3.8.1. Sorting
1.3.8.2. Project details
1.3.8.3. Document types

Show small logos in the project selection [Show small logos in project selection]

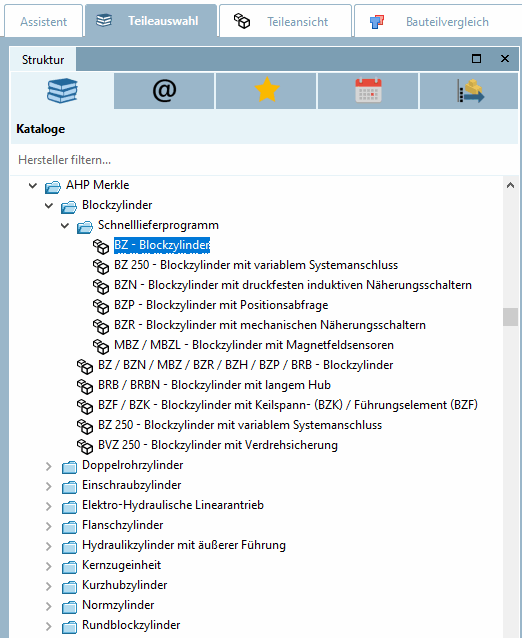

With standard symbols

With logos
Show company logos in favorites and links: ...displays the company logo (if available) of the respective catalog.

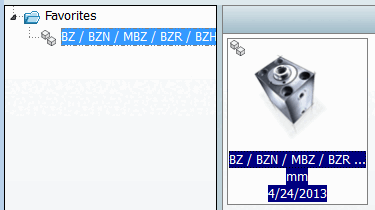

From

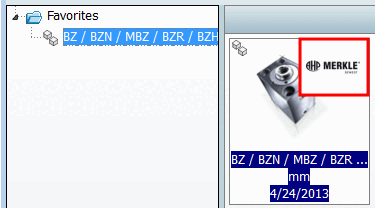

To
Do not show empty classifications: If the option is activated, classifications to which no projects have been assigned are hidden in the directory tree.

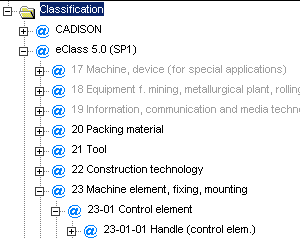

Empty classifications displayed
Single-click selection [Selection with single click]: Without this option, directories must be double-clicked to open them.
Show date: ...also shows the creation date of the respective directory/project.
Show validity date [Show end of life date]:
If the option is activated, the validity date is also displayed if standards expire, have been replaced or changed.

Validity date
Show unit: If this option is activated, the corresponding unit is displayed for projects.

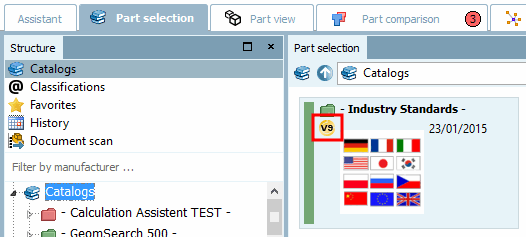

Show version:

When the option is activated, the version is displayed broken down by date and time.

Note
May only be displayed if the preview size [Size of preview] is set to medium [Medium].
Show quality seal:
Show tooltip with preview images [Show tooltip with previews]
Especially if the preview [Preview] and company logo [Company logo] are set to "small", it is helpful to move the mouse over the preview images to get an enlarged view in the tooltip.
The feature is available both in the details view [Details] in the part selection [Part selection] and in the search dialog box [Search] of the complex search.
If the 3D tooltip [3D Tooltip] option is active (see next point), this option is not effective.

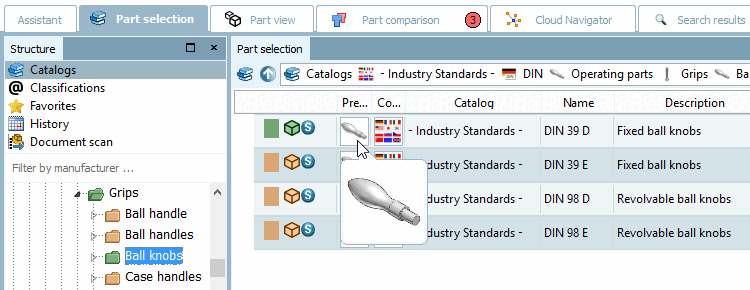

Enlarged preview image in details view [Details]
3D tooltip [3D Tooltip]
- No 3D tooltip [No 3D Tooltip]
- Small
- Medium
- Large
3D tooltips [3D Tooltip] are stored in the project selection (or in the Links dialog box). If you move the mouse over a 3D preview image, the tooltip is displayed. This has an icon in the bottom right-hand corner for dragging the size.

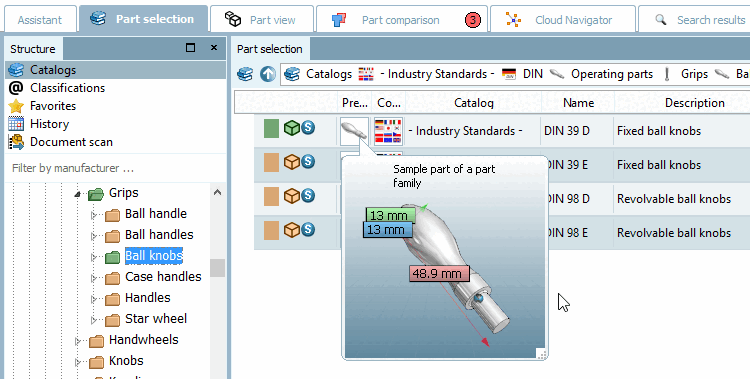

3D tooltip [3D Tooltip] in "Details [Details]" view

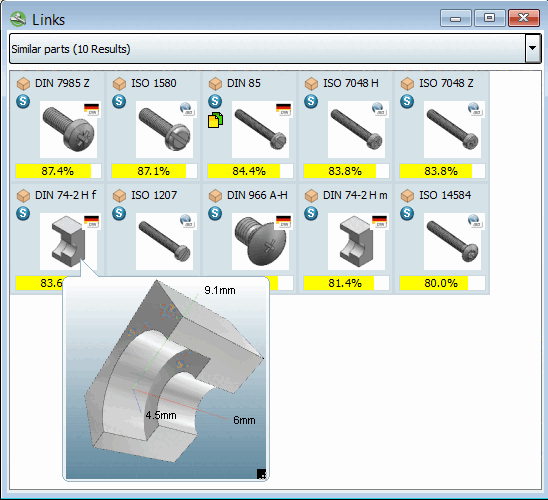

3D tooltip [3D Tooltip] in the "References [Links]" dialog

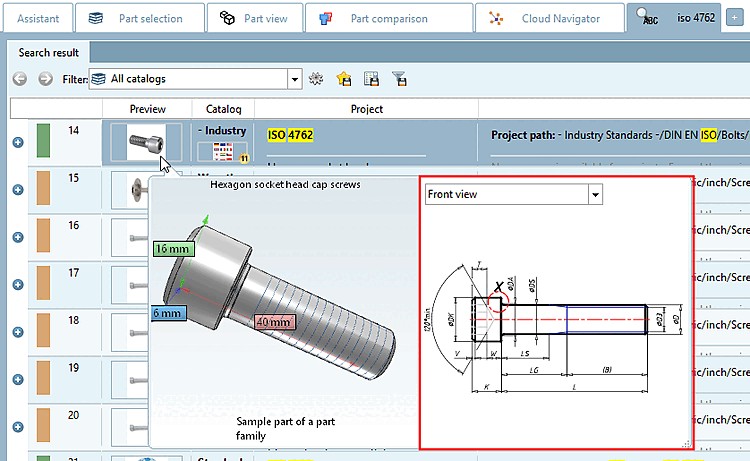

Show technical view in tooltip [Show technical previews in tooltips]:
Display in the References window [Content of the link window] :
Similar parts are displayed in the References [Links] dialog box. Specify here which category should be used as the basis for the comparison:
- Last selection
- Directory
- Accessories
- Similar parts
  A geometric search is carried out in the background.
- Special classification

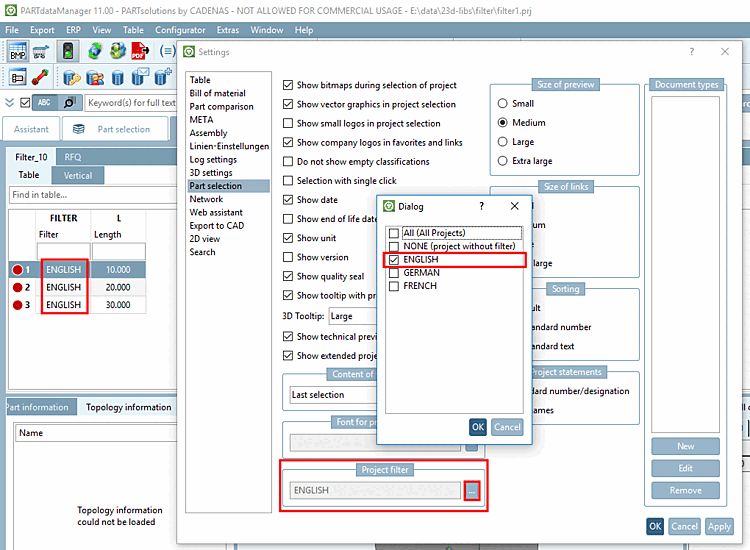

Project filter:
If projects have been prepared accordingly by the manufacturer, you can apply the filters created here.
- ALL (All projects) [All (All Projects)]: Activation of this option corresponds to the result of activating no option.
- NONE (projects without filter) [NONE (project without filter)]:
- All other filters are created by the manufacturer.
  The project lines that contain the corresponding filter value are displayed.
Details on creating filters can be found under Section 5.9.2.5, “Menu item: Table filter ” in eCATALOG 3Dfindit.
The filters can also be used for filtering when checking out a catalog in order to obtain a filtered catalog variant. See Section 5.8.2.1.15.10, “ Check out catalog ” in eCATALOG 3Dfindit.
Country of delivery [Delivery country]:
