1.3.7. Component comparison

The Settings dialog for the component comparison can be accessed via the Tools menu -> settings or directly from the component comparison via the icon be opened.

Comparative calculation [Comparison calculation]:
Live calculation in OpenGL (not all graphics cards are supported) [Live calculation in OpenGL (Not all graphic cards supported)] (activated by default)

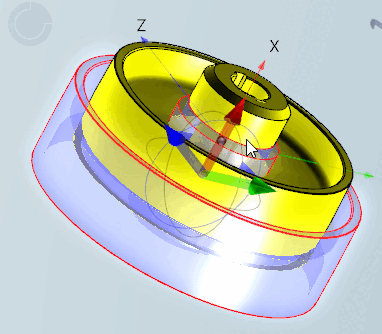

In the case of superimposed components, the comparison operations are calculated in real time when they are moved against each other.
Transparency settings:
The transparency settings [Transparency settings] are used in the 3D view.
- Transparency 1.component [Transparency 1.Part]
- Transparency 2.component [Transparency 2.Part]
- Result
Enter the desired value for transparency in the input fields (0 to 100 [invisible]).
Color settings:
Clicking in the color field opens the Select color [Choose color] dialog box.

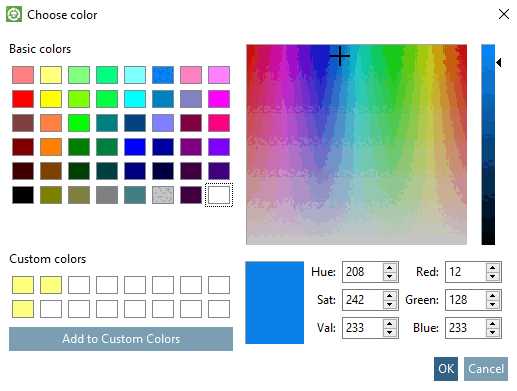

Select color [Choose color] dialog box

Select the desired color and confirm with OK.
- Color first component [Color first part]
- Color second component [Color second part]
- Result
- Brightness hidden edges (2D) [Hidden edges brightness (2D)]:
  The setting is used in the 2D comparison.
  The brightness of these is set to 50% by default so that "hidden edges" do not disturb the overall picture.
