The NX interface supports routing electrical features. For appropriately classified PARTsolutions parts (see Section 5.12.11.5, “Classification of electrical connections (Electrical Connection [CNS_CP|4|3]) ”), the connections are marked as multiports (multiple connections) with the double arrow symbol (as with parts created manually in NX).

On the pages of PARTsolutions are anchor points ^[58]is classified as a mounting point (see Section 5.12.11.17, “Classification of mounting points (Mounting Point [CNS_CP|4|6] and Mounting Description [CNS_CP|4|7]) ”). The classification information is currently^[59] not yet set in NX.

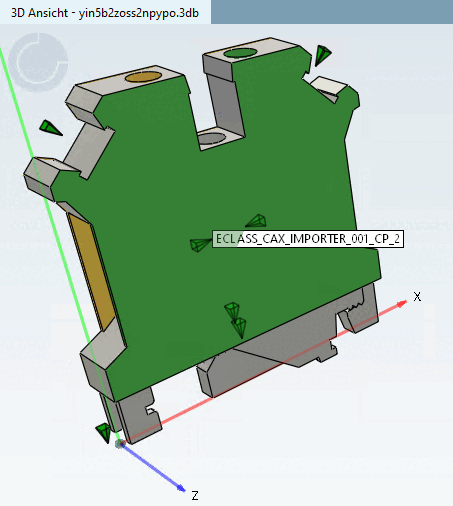

Part in PARTdesigner with connection points

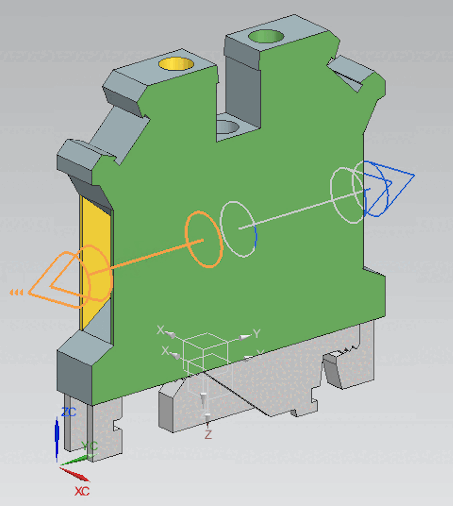

Part in NX with multiports
