7.8.14. Identification type

ENTERPRISE 3Dfindit offers the option of connecting ERP systems via a link database. This opens up various possibilities for mapping customer-specific company processes.

The prerequisite is that the value range variables are declared by the manufacturer according to the categories of the type identification [Identification type], because only then can an error-free conversion of these, or the resulting NB and LINA, be ensured in the ERP system.

The distinction also plays a role when generating the ERP number. For value range variables of type functional characteristic [Function attribute], the value remains changeable even if an ERP number has been assigned; for value range variables of type geometric characteristic [Geometry attribute], the value is pinned as soon as an ERP number has been assigned as soon as an ERP number is assigned.

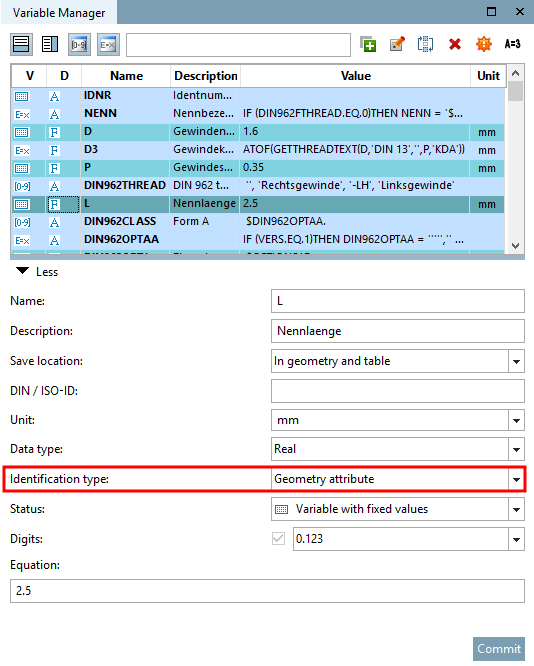

The type identification [Identification type] is set in PARTdesigner in the variable manager [Variable Manager].

Following options are available:

Functional feature [Function attribute]
Geometric feature [Geometry attribute]
Dimensional characteristic [Dimension attribute]
Characteristic [Object attribute]

According to the declaration, the presentation in the PARTdataManager is different.

In the following the use of the individual attributes is explained:

Function attribute

The functional characteristic [Function attribute] is used for stroke and angular positions, for everything that defines a mechanical movement in a part/assembly (e.g. the stroke position of a cylinder).

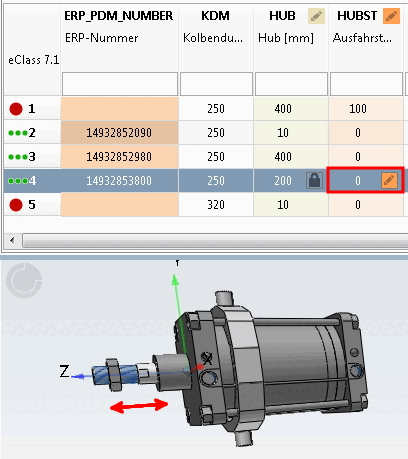

Geometry attribute pinned on 200, Function attribute not pinned with current value of 0.

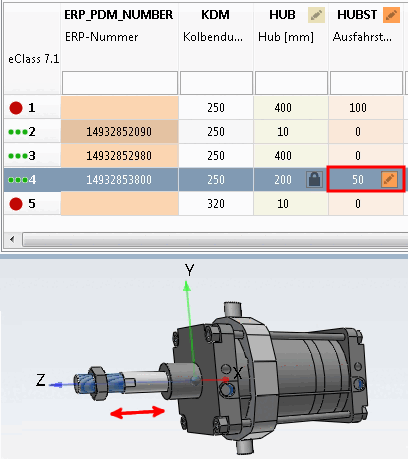

Geometry attribute pinned on 200, Function attribute not pinned with current value of 50.

	Note
	A function characteristic [Function attribute] is not pinned and can therefore be changed, even if an ERP number has already been assigned for the line in question.

Geometry attribute

The geometry characteristic [Geometry attribute] is used for characteristics that have an influence on the geometry, e.g. if the geometry of the part or assembly changes due to the variable (e.g. max. stroke length), or if components are added or removed, e.g. "Sensor yes/no" or "Option on/off".

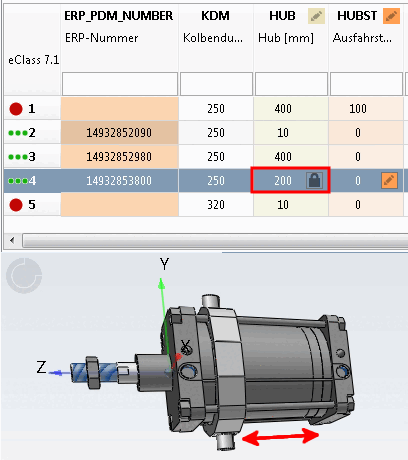

Geometry attribute is pinned on 200, Function attribute is not pinned and has the current value of 0.

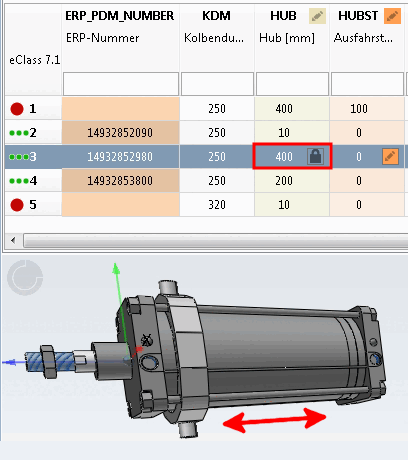

Geometry attribute is pinned on 400, Function attribute is not pinned and has the current value of 0.

Note

A geometric feature [Geometry attribute] is pinned as soon as an ERP number has been assigned for the relevant line. It is marked with a corresponding icon icon.

When you need another value, use the "neutral" row (without ERP number) beside the pinned one. (Whether export is allowed without ERP number or not, depends on the desired company internal workflow.)

	Note
	In the case of a cylinder, for example, a distinction must be made between the HUB, which is a geometric feature [Geometry attribute], and the stroke position, which is a functional feature [Function attribute]. With ERP functionality, the HUB is pinned as soon as an ERP_PDM_NUMBER has been assigned; the stroke position is not pinned. The pinned status is visible on a special icon . Different strokes are also assigned different ERP numbers with ERP functionality; different stroke positions are not.

Dimension attribute

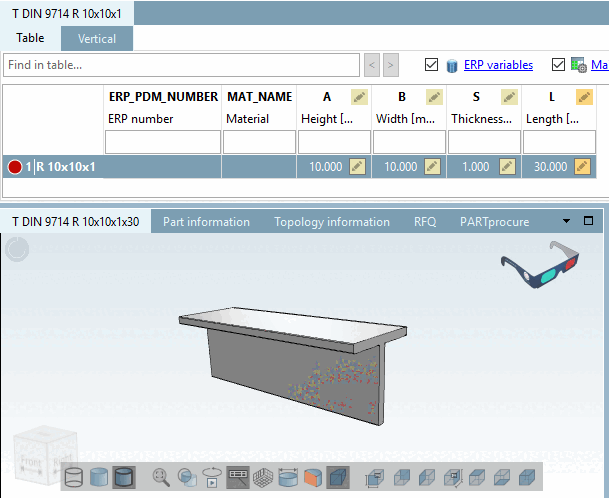

The dimensional characteristic [Dimension attribute] is used for semi-finished products and profiles that are produced in running meters (here variable L).

Note

Whether a dimensional characteristic [Dimension attribute] is pinned when an ERP number is assigned is set in the configuration file depending on the desired internal company workflow.^[a]

If you need another value, use the "neutral" row (without ERP number) beside the pinned one. (Whether rows without ERP number may be exported depends on the desired company internal workflow.)

^[a]See Section 4.16.2, “ Pin dimension feature on/off / plinkcommon.cfg -> Block [PARTdataManager] -> Key "LockDimRange" ” in ENTERPRISE 3Dfindit (Professional) - Administration.

Object attribute

The characteristic attribute [Object attribute] is used for values that are required for dimensional and/or product standards, for order numbers or technical specifications, etc. (characteristics that have nothing to do with geometry or function).

Note

A characteristic [Object attribute] is pinned as soon as an ERP number has been assigned for the relevant line. It is marked with a corresponding icon icon.

If you need another value, use the "neutral" row (without ERP number) beside the pinned one. (Whether rows without ERP number may be exported depends on the desired company internal workflow.)
