5.12.12.3. Edit class system

5.12.12.3.1. Building/editing class system
5.12.12.3.2. Adjust sorting of classes and subclasses
5.12.12.3.3. Create / edit attributes

Once the Create new class system or Change class system [Modify class system] <name> dialog box has been closed, you are in the Edit class system dialog box.

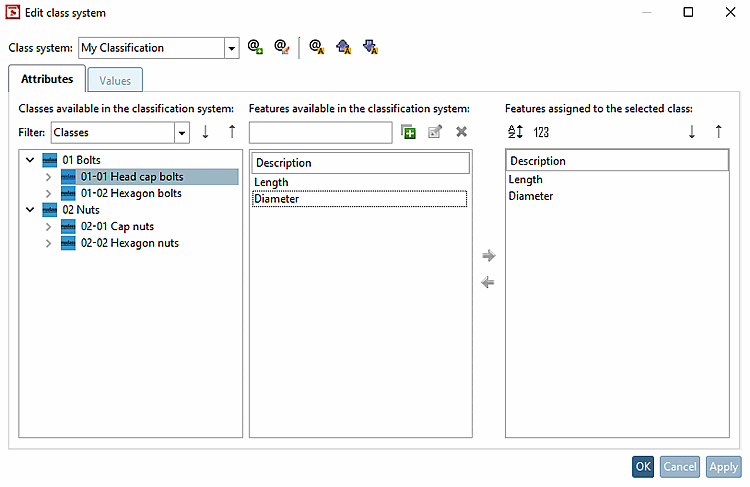

Dialog box: Edit class system

In the following the single functions/fields are described:

Class system: Select the class system to be edited from the list field.
Filter:
The selection options depend on which class types [Types of classes] were created when the class system was created on the Create class system -> Restrictions [Limits] tab dialog page.
Make the respective choice:
- Axes
- Connection points
- Plane
- Surfaces
- Edges
- Classes
- Coordinate system
- Sketch

Now set up your new class system, or edit an already existing.

The dialog box is subdivided in 3 areas:

Main window on the left side
In the context menu (secondary mouse key) the following commands are available:
- Add class...
- Add subclass...
- Edit class...
- Remove class
You perform the first step in the empty area with Add class [Add class...]... .
Features [Attributes] tab page entries are optional

The data is data under "%CADENAS_DATA%/datasetup/classsystem/<name>".
