5.12.11.2. Data sheet classification [CNSELEK|5|1]

Different data sheets (either as an additional file or simply as a hyperlink) in different languages are often assigned to a product. The CNSELEK|5|1 class provides a mechanism that achieves precisely this.

The class offers the following 4 attributes for this purpose:

00001B001/datasheet:hyperlink or Additional File Identifier (in the form: ADDFILE://Additional File ID)
000026001/language:<language of the data sheet (in CNS-specific form: German, English, ...)>
CNS_DATASHEET_INDEX: Optional sort index; unique across all instances CNSELEK|5|1
CNS_DATASHEET_DESCRIPTION: Description of the current datasheet (language already given by the language attribute)

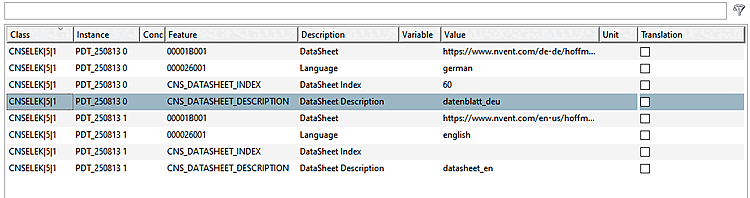

Product with 2 data sheets (in German and English) using CNSELEK|5|1

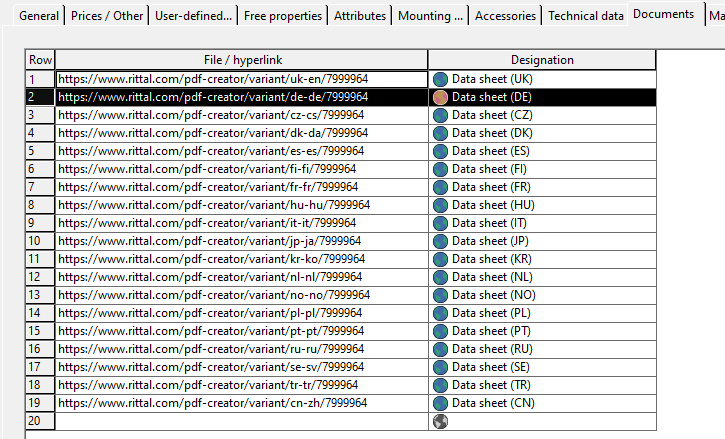

The following view then appears in the target system (here EPLAN):

Product with 2 data sheets (in German and English) using CNSELEK|5|1
