8.4.14. QRCode

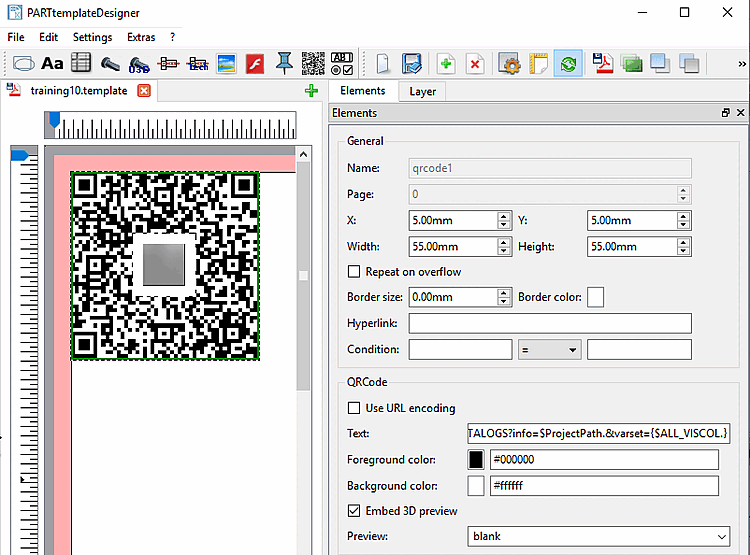

In this section you will find explanations of the QR code [QRCode] setting options.

General: See Section 8.4.2, “General settings”.
QR code [QRCode]:
- Use URL coding [Use URL encoding]:
- Text:
  The information used in the Text input field is embedded in the code.
  The following string is inserted in the text field by default.
```
http://b2b.partcommunity.com/portal/portal/CAD+CATALOGS?info=$ProjectPath.
&varset={$ALL_VISCOL.}
```
  The link points to the b2b portal, the project path and all visible columns are read out.
  - Adjust the link to your company address.
    Example:

    http://www.meine_firma.de/showproject.asp?NR=$BNR.
  - You can state any part parameters such as $NN., $NT., $NB., $ALL_VISCOL. (all visible parameters), $ALL_COL. (all parameters), $ProjectPath. (project path) or the part number for example.
- Foreground color / background color [Background color]:
- embed 3D preview [Embed 3D preview]:
- Preview: e.g. blank
  You can select from the standard background templates:
