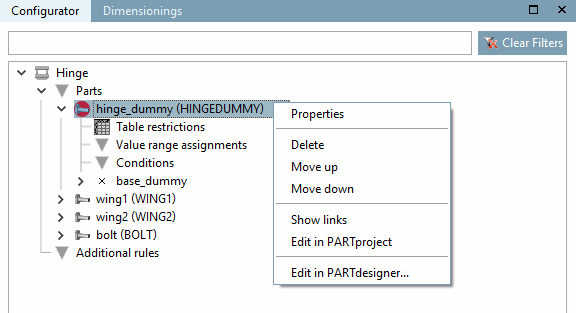

Properties

...opens the Properties [Part properties] window for the part [Part properties] (see above at Section 7.13.3.2.1, “Inserting components ”).

Delete

....removes the current part from the index tree.

	Note
	There is no confirmation prompt. The component is deleted immediately.

Move up / Move down

A part newly inserted is added in the tree at the very bottom. With these two commands you can move the part up and down in the listing.

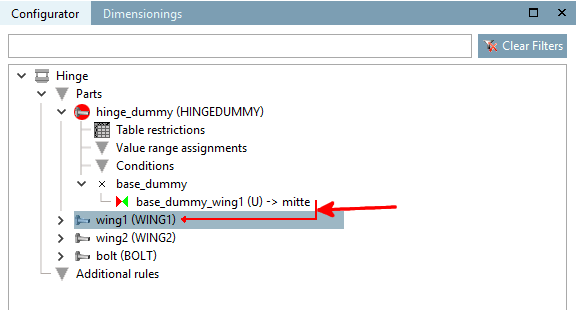

Show links

Opens the tree and shows the links [Links] between the connection point [Connection point] and the connection part [Connection part].

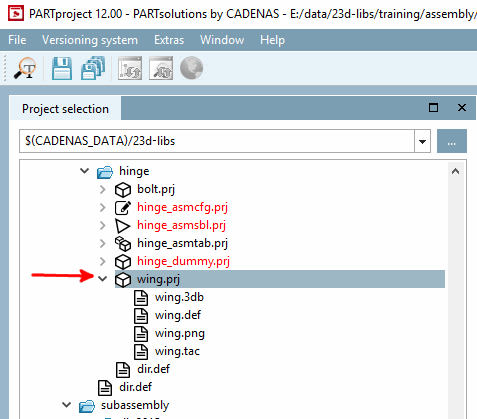

Edit in PARTproject...

This command calls up the module PARTproject module and immediately calls up the currently selected component.

There you can make changes and return to the configurator [Configurator].

Edit in PARTdesigner...

A new instance of PARTdesigner is called up with the 3D history [3D History], 3D view, variable manager [Variable Manager] and table [Table] docking windows.
