8.4.7. 3D view

In this section you will find explanations of the 3D view setting options.

General: See Section 8.4.2, “General settings”.

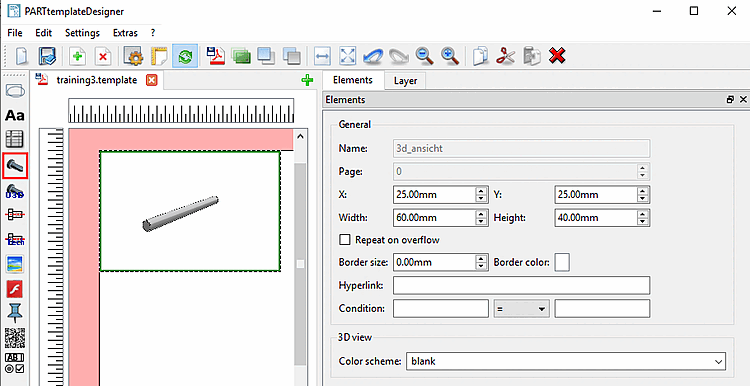

3D view:

Color scheme: Select the desired background color scheme.

Note

It is possible to define an own color scheme.

A separate colorschemes.cfgcan be stored in the "_templates" directory. This should then only contain the desired entry that is to be used in the PDF datasheet.^[a]

^[a]The standard background templates are located under $CADENAS_USER/colorschemes.cfg.
