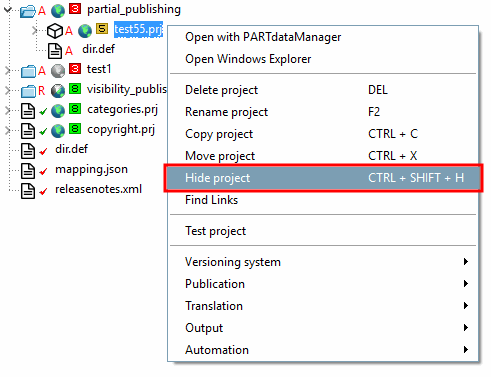

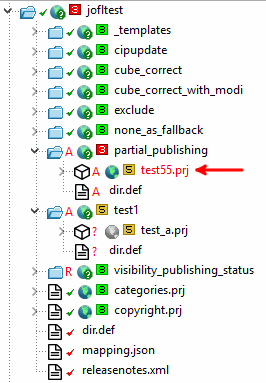

Context menu command Hide project

-> The font appears in red.

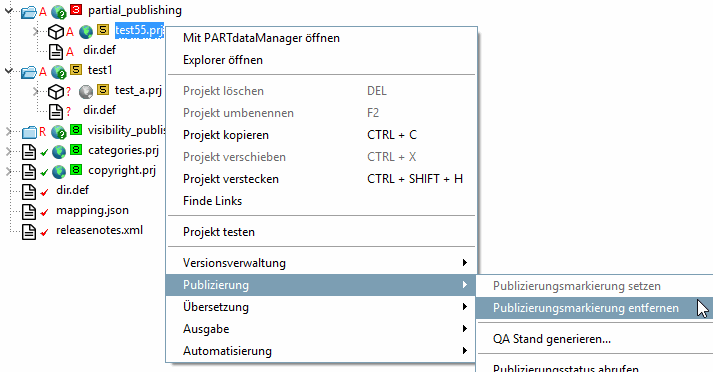

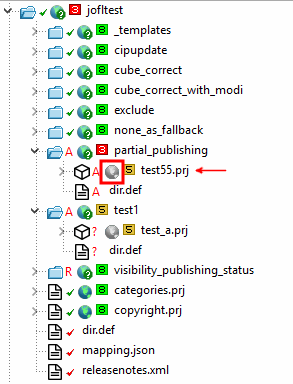

Context menu command Publishing [Publication] -> Remove publishing marker [Remove publication mark]

-> The icon with gray globe is displayed.

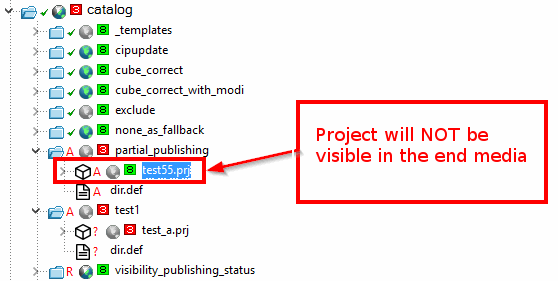

Publication mark removed ()

Projects with removed publication mark (display of gray globe ) are always hidden in end media (independently of their QA status). (This does not concern the local state; a setting on "hidden" just happens during the cip generation.)

This especially applies for projects with QA status 1 to 4, because for these status the publication mark cannot be set at all (so display of gray globe ).

Project visible (black font) + Publication marker set ()

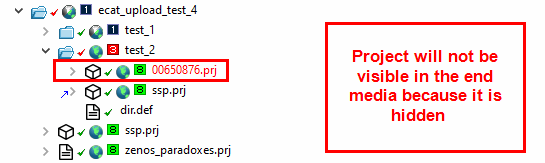

Project hidden (red font) + publication marker set ()

Hidden projects are always invisible in end media, even if the publication mark ( = green globe ) is set.

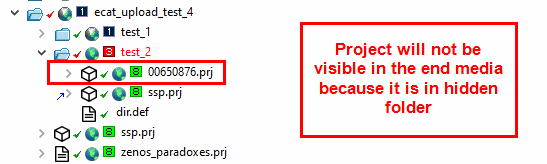

Project in a hidden folder (red font)

Link projects

Link projects are used, for example, to access one and the same original project with different table filters. (Details on this can be found under Section 5.8.2.1.3, “ New link ” -> Table restriction [Restricted display] ) The original project is (usually) hidden (red font).

Note Link projects inherit the status of the publication mark by the original project.

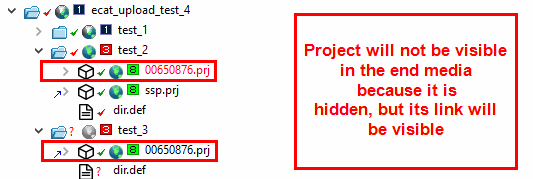

Example 1:

Original project hidden (red font), link project visible (black font)

Example 2:

Original project (black font) in hidden folder ( red font) (which means it is also hidden), link project visible (black font)

Example 3:

Original project hidden (red font), link project not visible (although not hidden = black font), as its parent directory is hidden (red font)

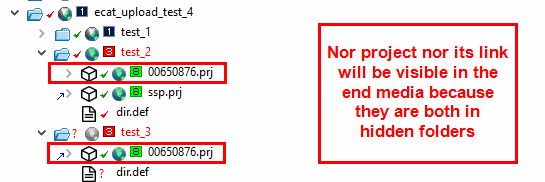

Example 4:

Original project and link project not visible (although not hidden = black font), because their parent directories are hidden (red font)
