New: The New/Open dialog box appears.

See also "Creating a template from A to Z", point Section 8.1, “Create template from A to Z”.

Save as catalog template saves a file <name>.template and a file <name>.ptdef under "_templates".

See also"Creating a template from A to Z", point 4.

Create page [Create Page]: Another page is added to the template.

Delete page: The selected page is deleted.

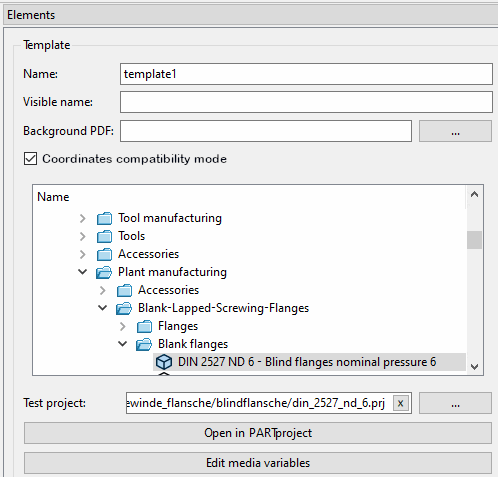

Template settings [Template configuration]: The Elements dialog page with the Template section opens (as a docking or as a window, depending on the current status).

See Section 8.3.2, “ Template configuration ”.

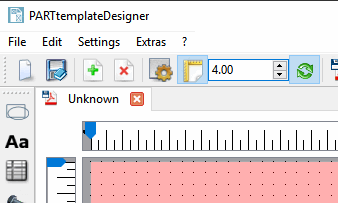

Use grid:

By clicking on the icon the grid is switched on or off. In the on-state the list field to set the distance of the matrix dots is visible.

The matrix dots do not only provide support at positioning of elements, furthermore the elements snap in there when moving these.

Positioning can also happen via arrow keys. On this compare Section 8.3.3, “ Designer configuration ”.

Refresh [Update]: Automatic refresh on/off

At complex test projects updating needs some time. Possibly turn it off.

Export PDF: Certain elements such as the U3D view only become visible in the PDF.

Then possibly use this preview function. The depiction is exactly according to the later depiction in the datasheet.

Open layer dialog: The Layers [Layer] dialog page is opened (as a docking or as a window, depending on the current status).

The higher the entry in the list, the more to the front the layer of the element.

Detailed information on this is found under Section 8.5, “ "Layer " tab page/dialog window ”.

Level forwards / Level backwards:

By clicking on the icons in the toolbar or on the plus/minus icons on the Layer tab page, the layer of the selected object can be moved forwards or backwards. The higher the entry in the list on the Layer tab page, the further forward the layer of the object is.

Increase the layer of the selected element [Raises the layer of the chosen items]:

Reduce the layer of the selected element [Lowers the layer of the chosen items]:

Further information on the Layer dialog page can be found at Section 8.5, “ "Layer " tab page/dialog window ”.

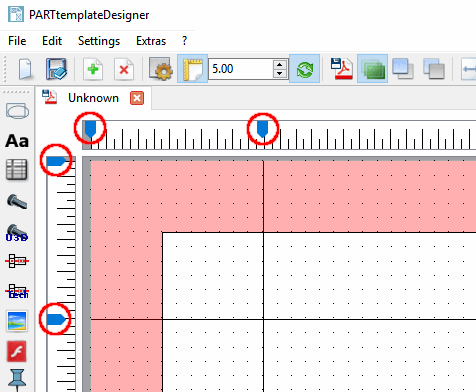

Show guidelines:

You can simply create auxiliary lines by drawing them from the top left corner into the page.

When a line is no more needed, then simply move it back to the top left corner.

Fit to window width

Adjust page to window size [Fit page to window size] (take height and width into account)

Undo

Restore

Zoom out

Note If the Ctrl key is pressed, you can zoom in and out with the help of the mouse wheel.

Zoom in

Copy

Cut

Insert

Delete

Select the object to be deleted and click on the Delete icon icon in the toolbar.
