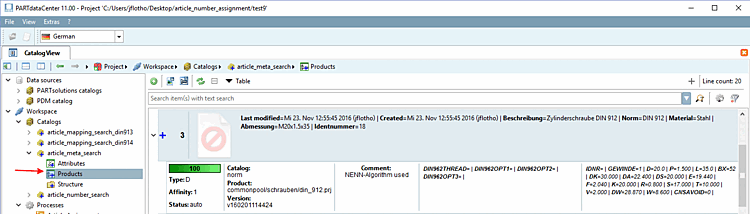

1.1.11.5. Product view - column definitions and abbreviations

Below you will find information on the meaning of the individual columns and abbreviations used.

Preview image:

When importing the CSV data, a reference to the preview images can be specified. If no preview image is available, a placeholder is displayed.
Quality (colored bar with percentage value)
- Fixed percentage values:
  - 100%: A clear allocation
  - 25%: In the case of ambiguity (i.e. more than one result was found for some variables), the percentage value is fixed at 25. (The number of matching parameters is irrelevant)
  - 1%: In the case of ambiguity (i.e. more than one result was found for some variables) AND if one or more parameters were one or more parameters for the variables to be compared, the percentage value is set to 1. (The number of matching parameters is irrelevant)

    Note
    The case that parameters are not found can only occur if a variable has not been declared as a variant. If declared as a variant, the variable is always "found".
- Other possible percentages:
  50%, 33%, 10%, etc.:
  Example "50%": This percentage value arises if exactly 2 mappings are specified and 1 of them does not map AND the remaining parameter is not found more than once. With 2 mappings, 50% is deducted for the parameter that is not found.
  Example "33%": This percentage value arises if exactly 3 mappings are specified and 2 of them do not map AND the remaining parameter is not found multiple times. With 3 mappings, 33% is deducted for each parameter not found.
Type: There are two identifiers: D for duplicate and V for variant.
- D - Duplicate indicates a clear match based on certain characteristics.
- V variants also belong to the parts family, but are not mapped in the project table, but can be mapped in the link database and thus displayed in the table view PARTdataManager Can be displayed in the table view.
Affiliation [Affinity]:
- 1: clear assignment
- >1: ambiguous assignment
Status:
The attributes auto, default or valid can be displayed.
- auto: The assignment was based on an automatic process such as dimension search [Dimension search], article number search [Article Number Search], attribute mapping [Attribute mapping], etc.

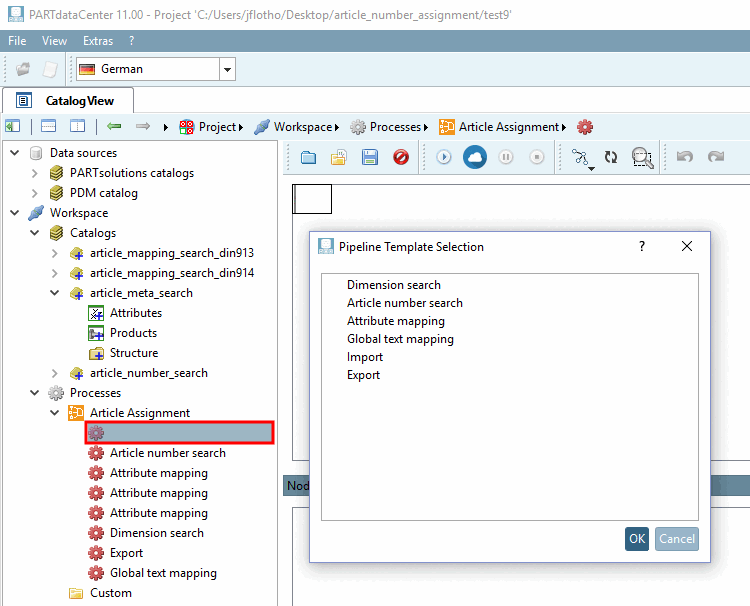

  Via "Load predefined template " automatic processes can be selected.
- default: The assignment is the result of a manual process. (Compare Section 1.1.4, “Manual assignment”.)
- valid: The value is created when explicitly assigned via the context menu command Change category to ... -> Valid on a product line (under Products )
Catalog: The PARTsolutions catalog in which the assignment took place.
Product: For example, the project path (in the case of a PARTsolutions catalog)
Penultimate column (varset): PARTsolutions-values from value range columns and variable values.
Last column (varsetupdate): All remaining PARTsolutions values.
