1.3.8.4. Configuration of the semi-automatic classification process

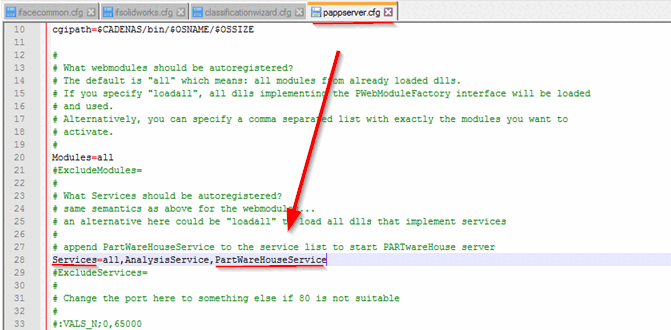

The PARTapplicationServer must be configured and started with the PartWareHouse service. For this purpose, the value PartWareHouseServicemust be added to the key Service in pappserver.cfg (%CADENAS_SETUP%).

Services=all,AnalysisService,PartWareHouseService

If you work locally, start the PARTapplicationServer from a console with parameter "-e".
Further initial configuration of the classification process takes place at classing.cfg(%CADENAS_SETUP%):

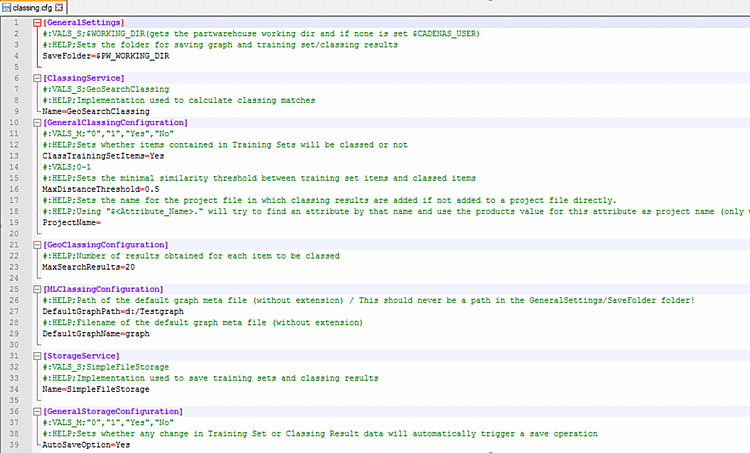

classing.cfg (%CADENAS_SETUP%)
- Block [GeneralSettings]
  - SaveFolder = $PW_WORKING_DIR

    Storage location for training sets and classification results. If the string is empty, _USER is saved in $CADENAS.
- Block [ClassingService]
  - Name = GeoSearchClassing

    Determination of the search method for classification. The default is the geo search.
- Block [GeneralClassingConfiguration]
  - ClassTrainingSetItems = Yes

    Setting whether the parts used as a training set are also classified: Yes or No.
  - MaxDistanceTreshold = 0.5

    Minimum similarity for a classification suggestion to be made. The best search result is always suggested and not an average value.
  - ProjectName =

    If no classification proposal is available, the projects are moved to this project / or proposed for it. To be clarified on a consulting-specific basis. To be specified like a class name.
- Block [GeoClassingConfiguration]
  - MaxSearchResults = 20

    Setting the maximum number of results to be used for a class proposal. The system generally searches for results and checks whether there is a suitable training set. If the value is set too low, mappings may not be created.
- Block [StorageService]
  - Name = SimpleFileStorage

    All class proposals that are not yet "approved" are saved temporarily.
- Block [GeneralStorageConfiguration]
  - AutoSaveOption = Yes

    Setting whether changes to the training sets or the results of the classification runs should be saved directly.
