1.4.2.
Tolerance import settings via pipeline (or via configuration file)
![[Note]](images/note.png) | Note |
|---|
Please pay attention to the correct setting with regard to tolerances! Problems can occur with small components with very small features (<0.01mm) and very large components with small features (40m steel strip with 1mm rounding). |

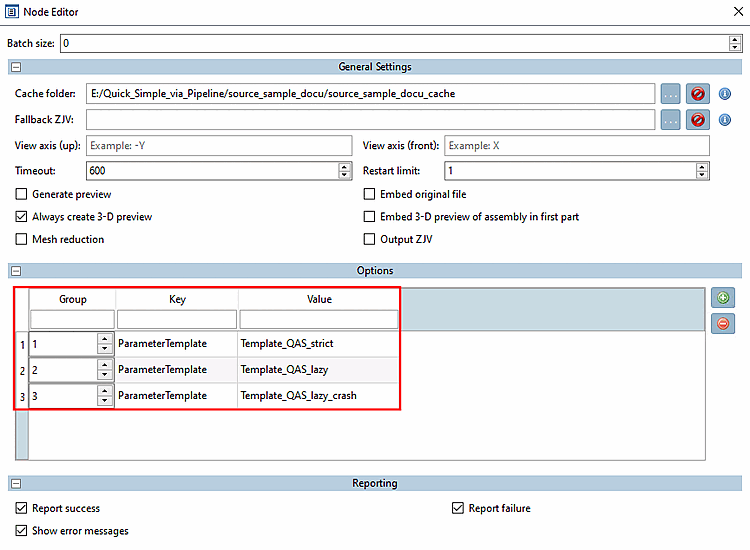

There are three standard templates for the Q&S import in the Quick & Simple node of a pipeline:
strict:
There must only be solids
All surfaces must be assigned to the solids
Under the built-in tolerance of Parasolid there is no error in the model (open surfaces)
lazy: The above points are not enforced, but reported
lazy crash: Like lazy, but will deal with known problems that may lead to an error
These templates should also be used in this order.
