1.2.8.5.1.4. ERP settings

You can map attributes and write their values directly into the LinkDB:

Preconditions:

The LinkDB has to be active.
The option Enable ERP has to be selected.

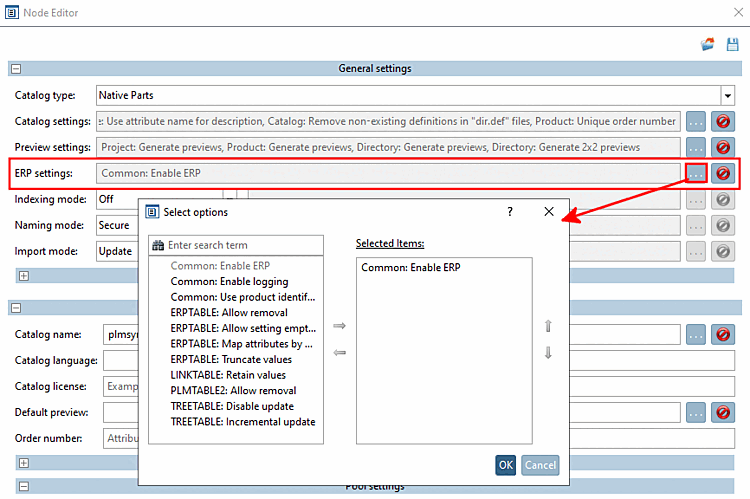

1. Select the node PARTsolutions Exporter.
2. Under LinkDb Settings, click on ....
  -> The Select options dialog is opened.
3. Move the item Enable ERP to the right and confirm with OK.

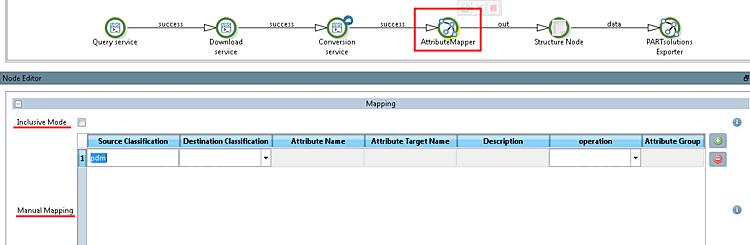

Mapping:

Mapping fields:

Source Classification: normally is "pdm"
Destination Classification: Selection in list field
- empty: Geometrical attribute
- linkdb = Field in LinkDB
Attribute Name: Attribute name which shall be mapped
Attribute Target Name: Name of target attribute
Description: Description of target attribute
(The description of different languages can be set)
Operation: Selection in the list field
- No entry: Add attribute
- Delete -> Delete attribute from table
- Hide -> Add attribute, but hide in table
- Use as Preview
Attribute Group: leave empty

	Note
	How to detect attribute name can be seen under Section 1.2.8.4, “How to get attribute name”.
