3.1.9.1.2. Filter " tab page

You can optionally make the following settings on the Filter tab page:

Filter " tab page

Assembly group [Assembly]
- Export subassembly [Exporting Sub-Assembly Structure] structure:
  This allows parts lists of the substructure parts to be evaluated in CAD for all parts marked with Transfer to parts list [Transfer to Bill of Material].
  The following two figures show an example of the result in NX, once without and once with a sub-assembly structure.

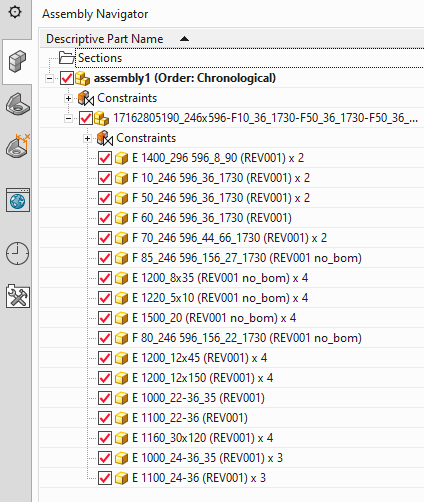

  Assembly without subassembly structure

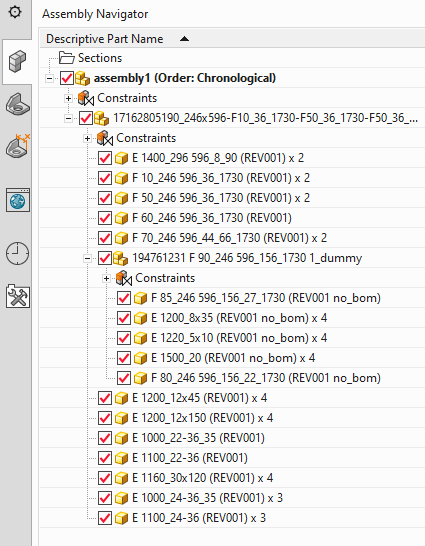

  Sub-assembly with sub-assembly structure
- Remove unused auxiliary parts:
- Remove empty sub-assemblies [Removing Empty Subassemblies]:
Geometry
- Resolve [Convert drafts to sweeps] draft as sweep:
- Resolve pattern [Split pattern]:
- Dissolve drill holes [Convert holes]:
- Suppress geometry:
- Reuse documents:
Metadata
- Suppress attributes
- Resolve link attributes [Resolve Link Attributes]
- Suppress classification
- Compress classification [Compress Classification]
Alternative formats Individual part [Alternative formats item]
- Add mesh data
- Add alternative format
Alternative formats Assembly [Alternative formats assembly]
- Add mesh data
- Add alternative format
Additional information
- Use [Usage]
  - Main part only [Only main part]
  - All elements
  - None
- 3D view
- 2D view
- 3D Dynamic [3D dynamic]
- Resolution for images in pixels (width)
- Resolution for images in pixels (height)
- Additional files
Links
- Create links [Create crosslinks]
- Links do not create assemblies
- Value ranges
- Documents
- Documents Metadata [Documents metadata]
- Include links
