3.1.9.3.2. Animated GIF

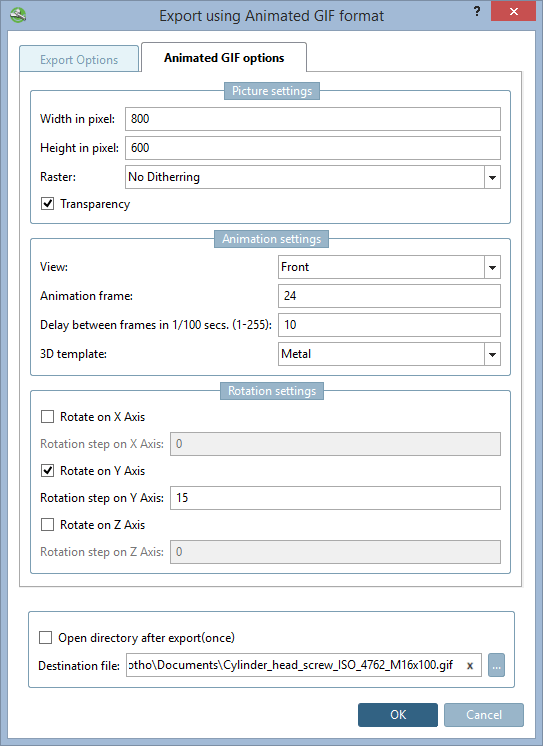

You will find the following setting options on the Animated GIF options tab page:

Image settings [Picture settings]:

Width in pixels [Width in pixel], height in pixels [Height in pixel]
Enter the desired hight and width in the input fields.
Grid [Raster]:
- No Ditherring
- Ordered Dither
  Special algorithm that is used to create the illusion of color depth for a restricted color palette.
- Error diffusion
  Also a special algorithm which is used to create the illusion of color depth for a restricted color palette.
- Transparency:
  In order to get a transparent background activate the option.

  Not transparent

  Transparent

Animation settings:

Animation frame

Frames pro Rotation

	Note
Please note the interaction with the settings under Rotation settings. Example: If you set the rotation increment to 1°, you need 360 frames per rotation, so that a full rotation can be done.

Note

Please note the interaction with the settings under Rotation settings.

Example:

If you set the rotation increment to 1°, you need 360 frames per rotation, so that a full rotation can be done.

The more frames, the larger the file.

Delay between frames in 1/100 seconds (1-255)
The rotation speed results from this setting and the Animation Frame [Animation frame] setting.
3D template:
You can adjust the color style to the layout of PARTsolutions versions, CAD systems and other style templates:
8.1, 9.0, Purist, Metal, Wood, Catia V5, Solid Edge, SolidWorks, NX, One Space Designer, Pro/Engineer, Inventor

Rotation settings

Optionally you can define the rotational increment in degrees for the individual axes.

You can adjust the export accuracy [Export accuracy] on the Export options tab page.

Select the desired accuracy from the list field:

The component is recalculated to the set level of detail before export.

The function is identical to the detailing option in the PARTdataManager but here only temporarily for the export.
