2.1.6.4.14. Filter wizards (provided by the manufacturer)
|  |
| Prev | Next |
Search Assistant [Search assistant] and
Calculation Assistant [Calculation assistant] can be found in the catalogue of the
manufacturer. In the index tree, you can identify assistants by
corresponding icon
.
Selecting such a project opens the "Search wizard [Search assistant]" or "Calculation wizard [Calculation assistant]" docking window.

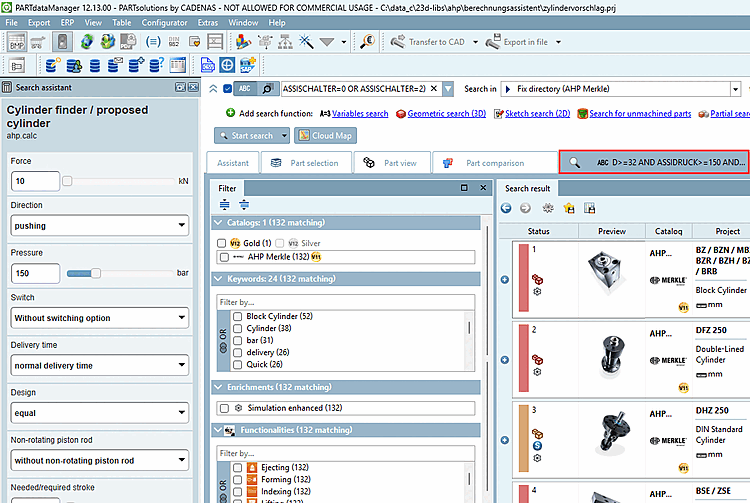

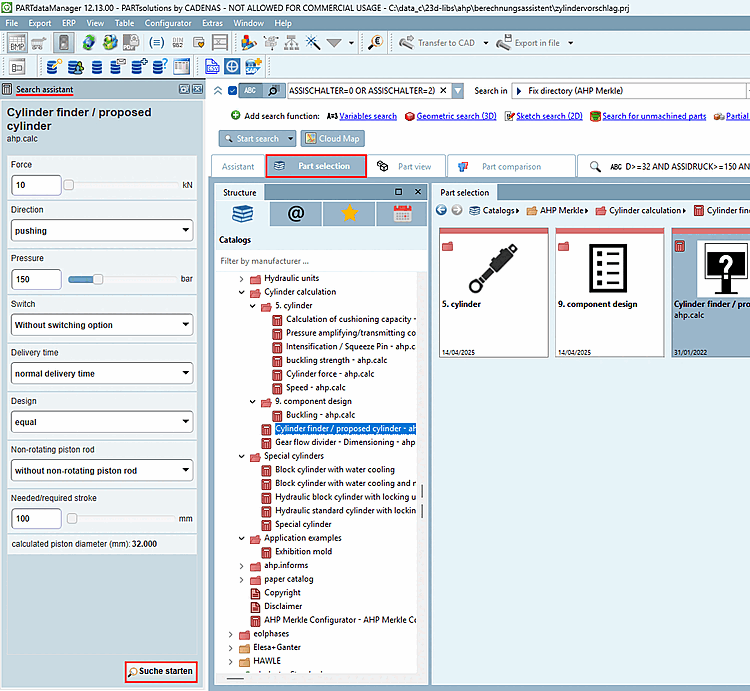

Search wizards make it easier to restrict the search to relevant search parameters, for example using sliders and list fields. A search can be carried out directly from the wizard by clicking on the button.
The results are listed as usual on the search results Tabbed page.

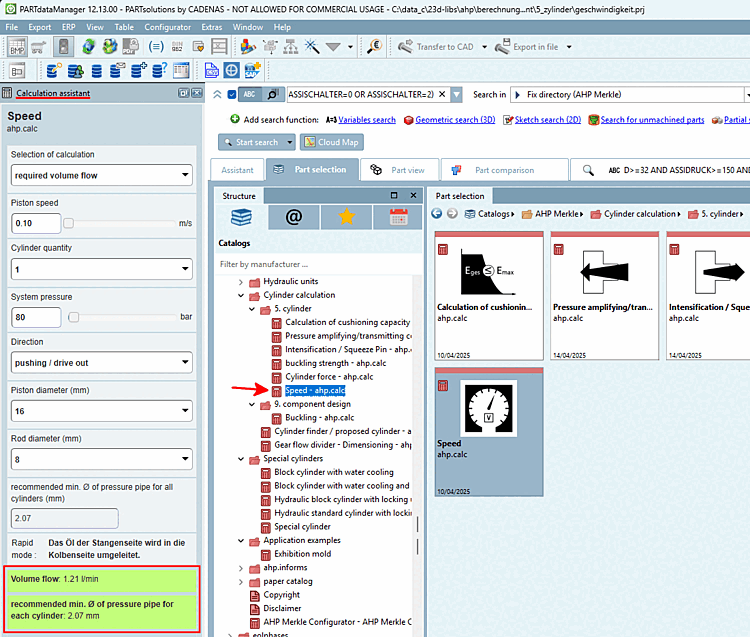

Calculation wizards automatically perform a calculation based on the input of relevant parameters. The result is displayed below the entries and can be used for orientation when selecting parts.
