In the Classifications category you will find the components classified according to many different classifications:

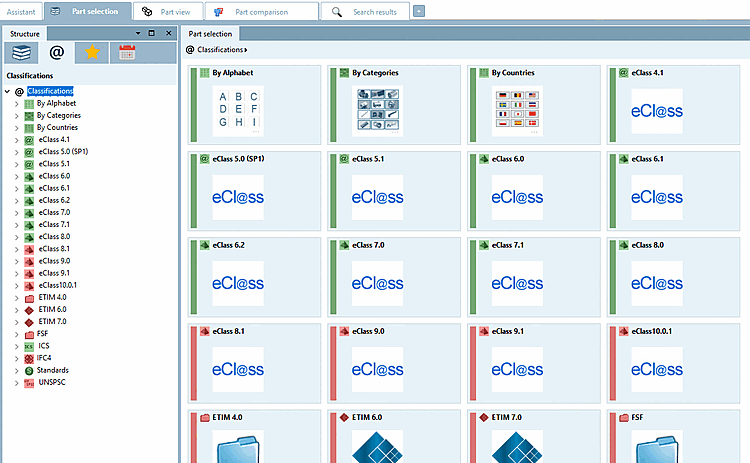

Classifications at a glance
Nach Alphabet
Click on By alphabet.
Click on the initial letter of your choice.
--> Now those catalogs are displayed whose name begins with the selected initial letter.
Now select the desired catalog.

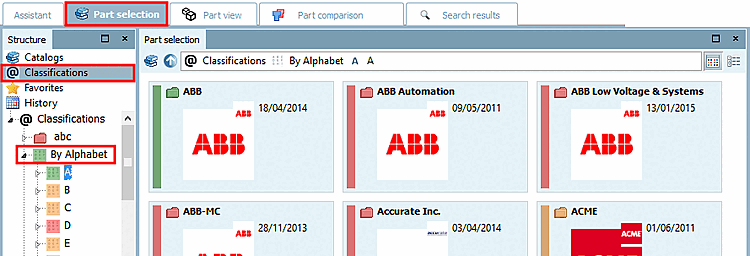

Classification: By Alphabet
Nach Kategorien
Click on By categories.
Select a category.
--> Only those catalogs are shown which contain parts in the selected category.

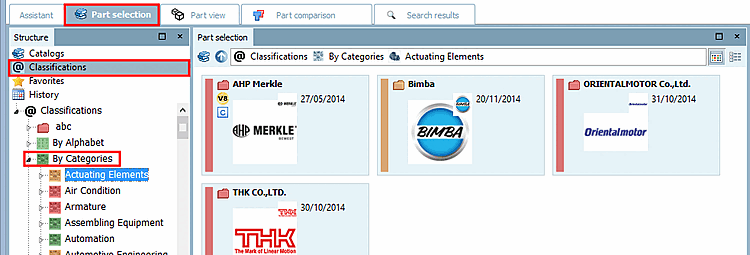

Classification: By category
Nach Ländern
Click on By country.
Click on the country of your choice.
--> Only catalogs are shown which deliver parts for the country you selected.
Select the desired catalog.

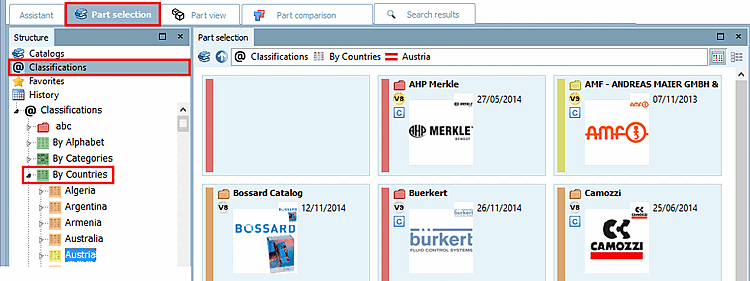

Classification: By country
Further classifications [Classifications]:
CIBSE PDT
eClass 4.1, 5.0 (SP1), 5.1, 6.0, 6.1, 6.2, 7.0, 7.1, 8.0, 8.1, 9.0, 9.1, 10.0
ETIM 4.0
FSF
ICS
IFC4
OmniClass
OmniClass 2006
Standards
Uniclass2015
UNSPSC
Own classifications

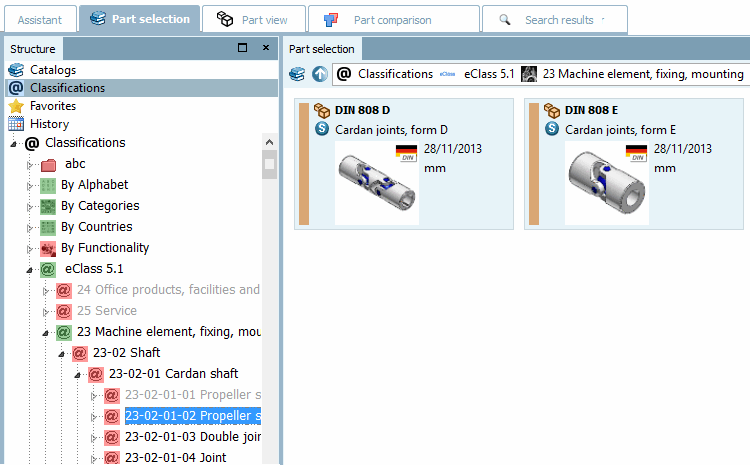

As soon as you click on a directory level in the directory tree, the directories of the next lower level are displayed on the right under Symbols or Details.
