"Cloud Map " display mode
|  |
| Prev | Next |
In the
Cloud Map mode you will find the following features:
Geometric similar parts are closer together than less similar parts.
In this way you get a quick overview on the search results and possibly can specify the search in a further step.

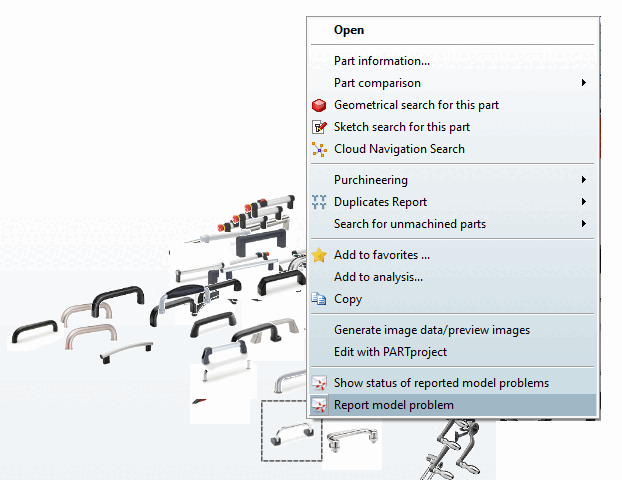

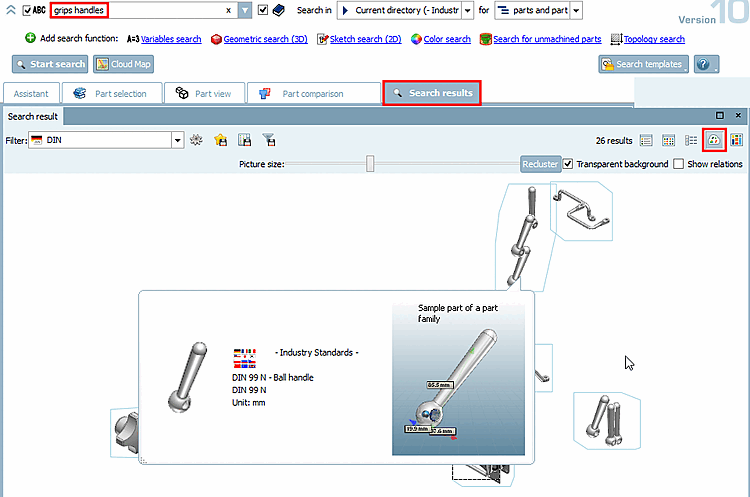

By clicking on a part (graphic) a tooltip with part information on standard number and standard name is displayed, furthermore a 3D preview.
Above the Cloud Map a toolbar with additional functions is displayed:
Image size [Picture size]: Adjust the image size using the slider.
Transparent background: Switch off the transparency if graphics overlap and you want to focus on a selected graphic.

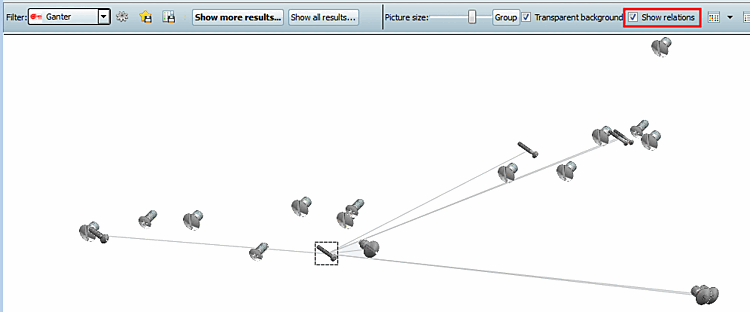

Show relationships [Show relations]: If you activate the checkbox, relationship lines based on textual match are displayed. Geometric and textual information does not necessarily have to match.
