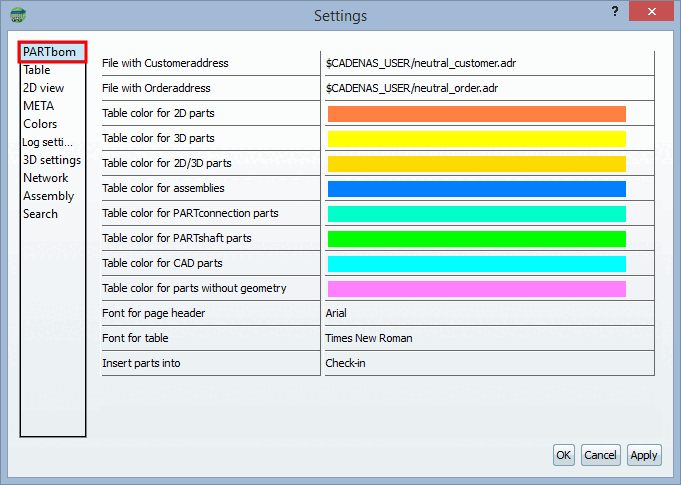

You can carry out various settings which affect the display of the menu areas. You can also define directories in this menu in which the files of customers and/or ordering addresses are stored (see above).

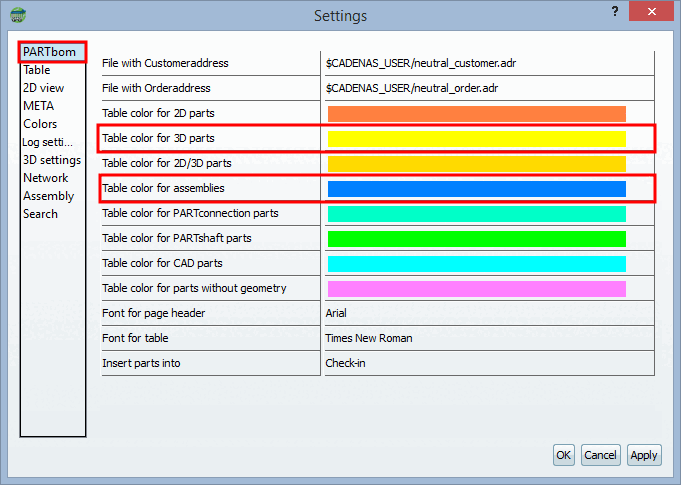

The different background colors of the rows in the table view [Table view] depend on the respective part type (or origin). For example, the table color for 3D parts [Table color for 3D parts] is yellow.

Table with assembly and 3D part

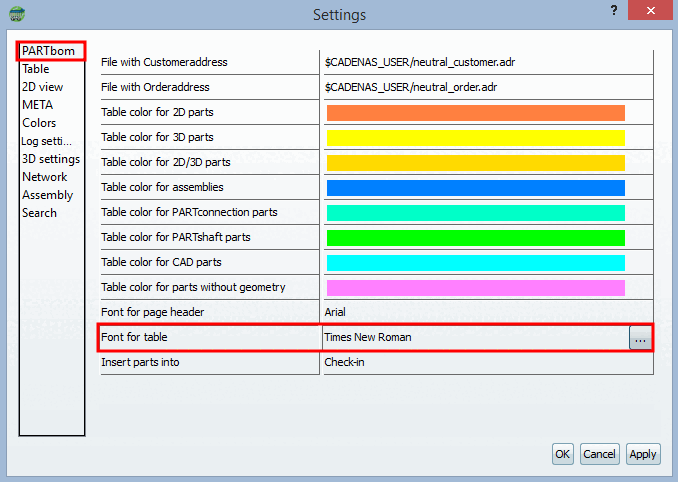

Font for table: You can also define font types in the print preview [Print preview] or table view [Table view]. Open the corresponding selection menu using the button on the right-hand edge of the row (appears when you click in the row).

Insert parts in [Insert parts into]: Please read Section 3.2.5, “ Hierarchical view ”.
