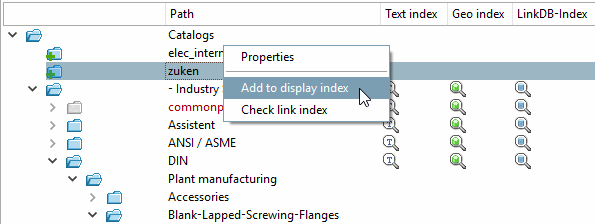

Add to display index

The command is displayed when calling the context menu on the respective directory.

Alternatively, as long as no index exists, you can also delete the data again (in PARTproject or at file level).

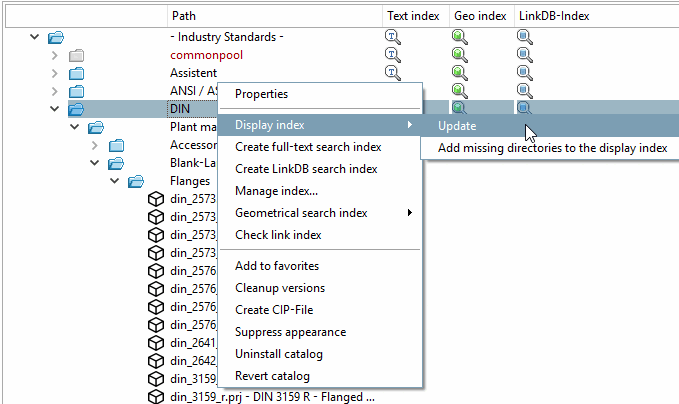

Display index -> Refresh [Update]

Note For changes, Display index -> Update must be used.

When executing this command, the clicked directory including all subdirectories is searched and the Display index is updated.

The display index is required for saving or displaying the directory structure. It must be present so that the other indices can be generated and the catalog can be displayed in the PARTdataManager can be displayed. Other indexes are optional for the functionality in the PARTdataManager (although they are useful in order to be able to use both the full text search [Full-text search] and the various geometric search methods).

As soon as the command has been executed, the progress indicator appears at the bottom of the display area under Index update.

Index update

Note Update display index is required, for example, if project files (*.prj ) have been changed or moved in the meantime. A missing display index is indicated by the icon .

Display index -> Include missing directories in the [Add missing directories to the display index] display index

The directory directly under "Bolts" is added to the index.

The function only adds missing directories into the index, which are directly under the chosen one. Directories, which are further down in the hierarchy are not added.
