If settings have been made for a certain project (standard or supplier part), when opening the part in PARTdataManager, the dialog box Discontinued part is displayed, where one or several parts are listed, which can be loaded instead of the original selection (if this option has been activated in the configuration file replace_std.cfg).

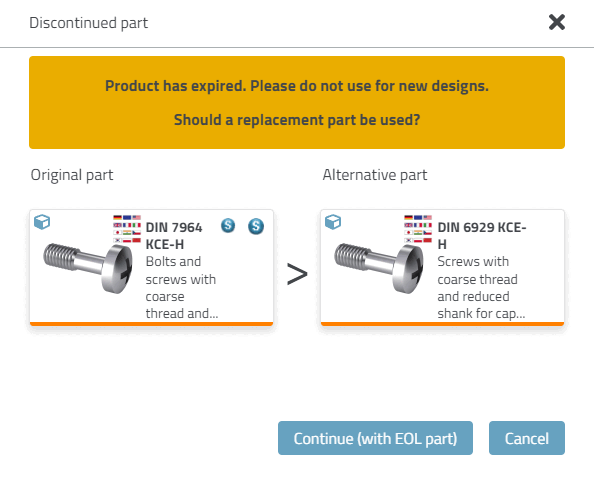

Dialog box "Discontinued part"

If the key SHOWBITMAPS (see Section 1.7.3.3.1, “General settings”) is set to '1', in PARTdataManager index tree, additional icons are displayed for replaced or removed standards.

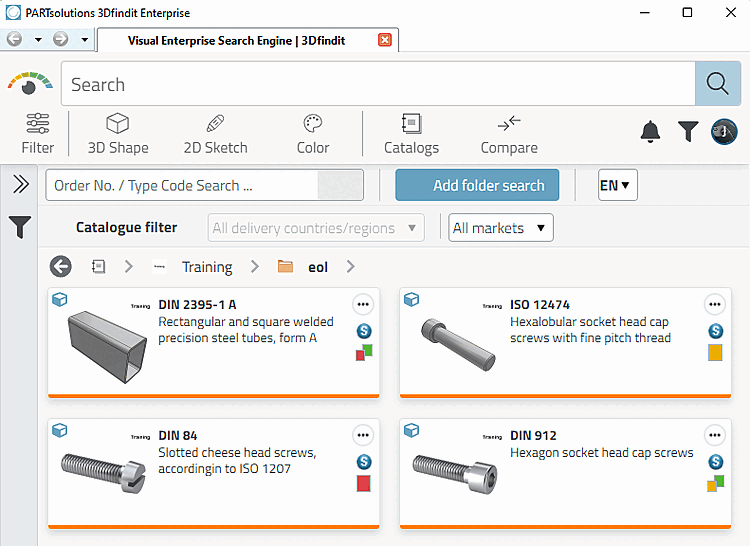

Icons in index tree and "Symbols" view

Meaning of icons

	Config entry: ALLOW_OLD=0: Old standard removed without replacement No entry under NEW1, 2, etc. Display in the dialog box: Product discontinued. Please do not use for new projects. No display of alternative parts
	Config entry: ALLOW_OLD=1: Old standard temporarily allowed No entry under NEW1, 2, etc. Display in dialog box: Product to be discontinued. Please do not use for new projects. No display of alternative parts
	Config entry: ALLOW_OLD=1: Old standard temporarily allowed Entry under NEW1, 2, etc. Display in dialog box: Product to be discontinued. Please do not use for new projects. Display of alternative parts
	Config entry: ALLOW_OLD=0: Old standard removed without replacement Entry under NEW1, 2, etc. Display in dialog box: Product discontinued. Please do not use for new projects. Display of alternative parts

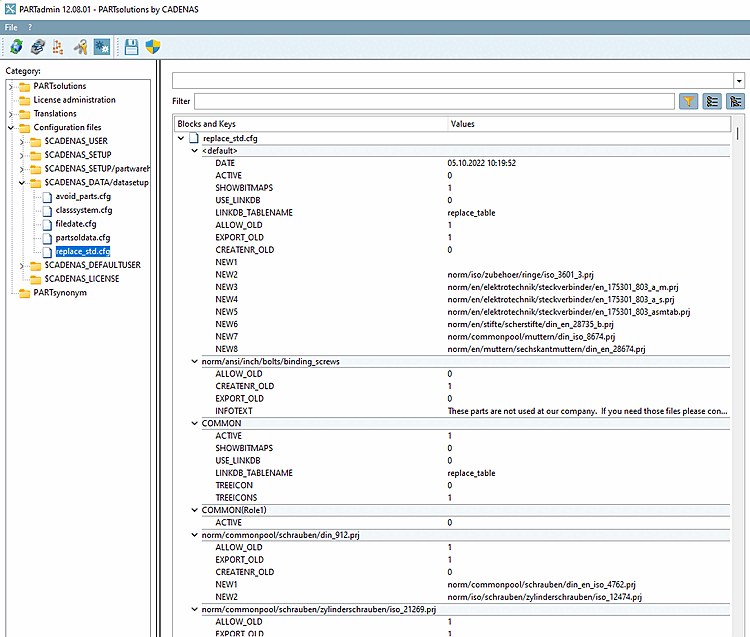

You can access the configuration file in PARTadmin under category Configuration files -> $CADENAS_DATA/datasetup -> replace_std.cfg.

	Note
	Please restart PARTdataManager after changes.

Sections with project path

In the following blocks, you specify the expired standard and supplier parts.

Block name is the complete relative path down to the project file. This is the project to be replaced.

Example:

[norm/din_en_iso/schrauben/zylinderschrauben/din_912.prj]

ALLOW_OLD = (Value range 0 or 1)
If set to 1, the Open button is visible.

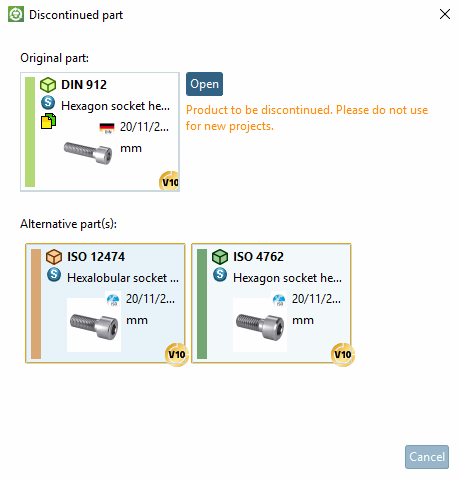

ALLOW_OLD = 1: Button "Open" button visible

If set to 0, the Open button is not visible.

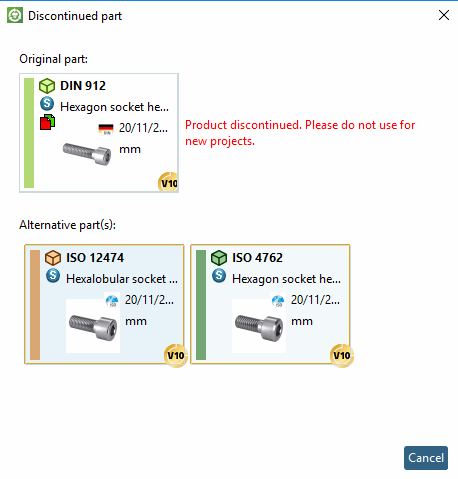

ALLOW_OLD = 0: Button "Open" is hidden
EXPORT_OLD = (Value range 0 or 1)

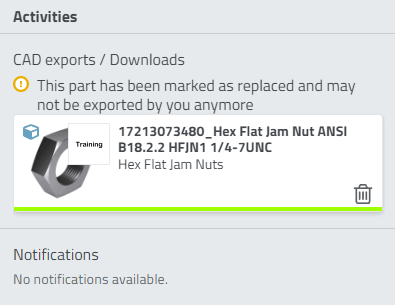

- 0: When exporting a part the following message is displayed:

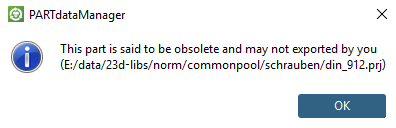

  This part is said to be obsolete and may not exported by you.
- 1: Part may be exported.
  A message is displayed.
CREATENR_OLD = (Value range 0 or 1)

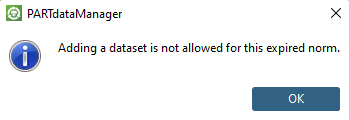

If set to 0, then when clicking on the button Add dataset to link database , an error message is displayed.

Note
To use this function, in erpcustom.cfg -> block [ADDTODB], the script replace_mm.vbs has to be activated.
NEW1 = norm/din_en_iso/schrauben/zylinderschrauben/din_en_iso_4762.prj
Relative path to new project (starting with the catalog name).

Note
If no entry is made, the icon for Replaced without substitution" will be displayed.

Specify all projects in this way.

Separate replacement table

The specification of the replacement file can occur in the replace_std.cfg file, or, with larger amounts of data, in a separate table of the LinkDB (REPLACE_TABLE).

In the "Keys" field, the key must be given.

In the "Value" field, you must enter the value.

In the "Keys" field, the key must be given.

In the "Value" field, you must enter the value.

SECTION	KEYS	VALUE
norm/din_en_iso/schrauben/zylinderschrauben/din_912.prj	ALLOW_OLD	0 or 1
norm/din_en_iso/schrauben/zylinderschrauben/din_912.prj	EXPORT_OLD	0 or 1
norm/din_en_iso/schrauben/zylinderschrauben/din_912.prj	CREATENR_OLD	0 or 1
norm/din_en_iso/schrauben/zylinderschrauben/din_912.prj	NEW1	norm/ din_en_iso/ schrauben/ zylinderschrauben/ din_en_iso_4762.prj
norm/din_en_iso/schrauben/zylinderschrauben/din_912.prj	NEW2	More project may be given, which are to be listed. These will be called NEWx in increments.
norm/din_en_iso/schrauben/zylinderschrauben/din_912.prj incremented.	NEW3	Other project
