2.3.8.4.1. Block [AttributeMapping(is3d)]

2.3.8.4. Attribute mapping in Solid Edge 2.3.8.4.1. Block [AttributeMapping(is3d)]
Prev	Next

In the block AttributMapping(is3d) you can determine whether the PARTsolutions standard attributes are to be transferred to the CAD system, and if so, in which language(s)

Under Attr_CopyFrom_01 set the desired language.
- default: The attributes are exported in $CADENAS_LANGUAGE.
- Assign language (german, english, french, etc.): The standard attributes are exported in the indicated language.

  Note
  If there is no translation for selected language of the attribute, no attribute is exported (not even from the $CADENAS_LANGUAGE language).
- No entry: No standard attributes are transferred. (In order to explicitly export specific attributes, please see the information in the following sections.)
Possible values for language are:
default,german,english,italian,french,spanish,portuguese,czech,slovak,hungarian,slovenian,dutch,danish,finnish,russian,japanese,korean,chinese,polish
For copying attributes the parameters "var_exclude" and "var_visbile=1" can be used.
"var_visible=1" at this place tells the interface that only visible attributes have to be processed
With "var_exclude" you can assign certain attributes to an "Ignore" list.
Examples:
- ```
Attr_CopyFrom_01=default,var_exclude=A,var_visbile=1
```
  The variable A is explicitly set to the ignore list.
- ```
Attr_CopyFrom_01(isCatalog(norm))=default,var_exclude=D,var_visbile=1
```
  The expression is only applied to the standards catalog.
Under Attr_Prefix_01 set the desired prefix.
The keys Attr_Content_01 and Attr_Section_01 remain unchanged.

	Note
If there is no translation for selected language of the attribute, no attribute is exported (not even from the $CADENAS_LANGUAGE language).

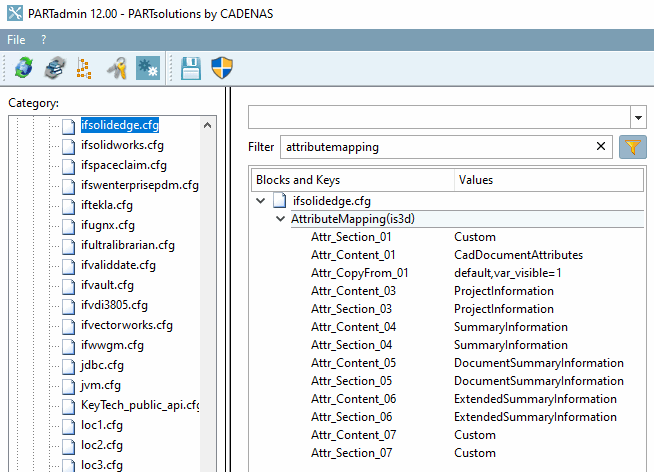

PARTsolutions: tabbed page "AttributeMapping(3D)"

In Solid Edge the attributes are displayed under Part properties on the User-defined tabbed page as standard attributes.

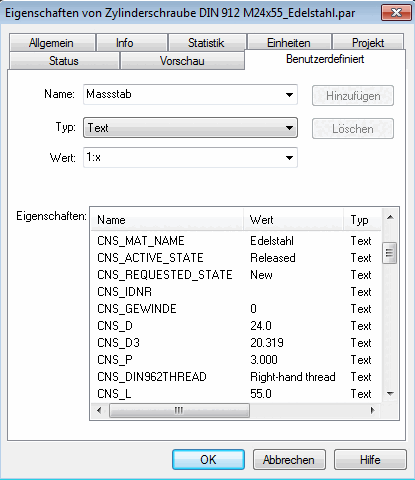

Solid Edge: tabbed page "User-defined"
